Tableau connector

1. Install the SDK

   Node.js

   npm install @scalekit-sdk/node

   Python

   pip install scalekit

   Full SDK reference: Node.js | Python

2. Set your credentials

   Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

   .env

   SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
   SCALEKIT_CLIENT_ID=<your-client-id>
   SCALEKIT_CLIENT_SECRET=<your-client-secret>

3. Set up the connector

   Register your Tableau credentials with Scalekit so it can authenticate requests on your behalf. You do this once per environment.

   Dashboard setup steps

   Connect your Tableau Cloud or Tableau Server site to Scalekit so your agent can browse workbooks, query views, export dashboards, and manage users.

   Scalekit handles session token management automatically. You store your Personal Access Token (PAT) credentials once, and Scalekit signs in and refreshes the session token before it expires — your code never calls the sign-in endpoint directly.

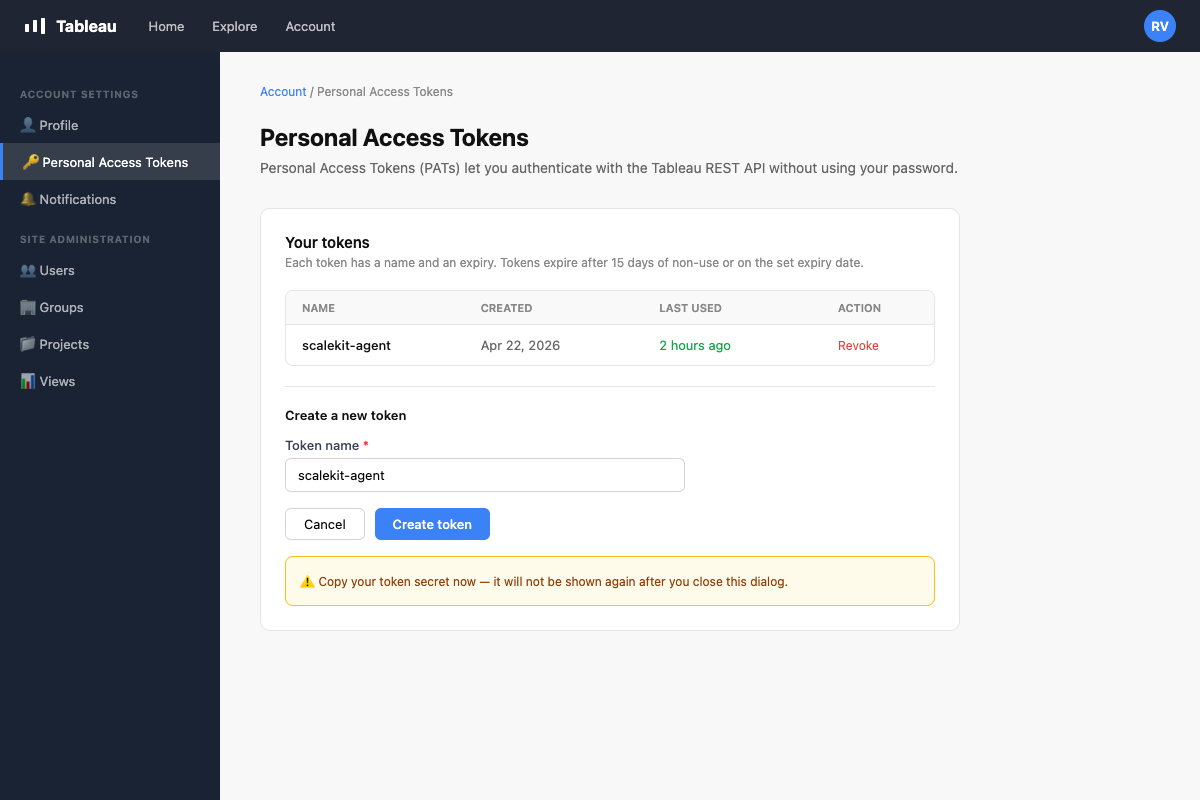

   1. Create a Personal Access Token in Tableau

      A Personal Access Token (PAT) is used by Scalekit to sign in on your behalf and keep the session alive automatically.

      • Sign in to your Tableau site.
      • Click your avatar in the top-right corner → My Account Settings.
      • Scroll to the Personal Access Tokens section.
      • Click + Create new token, give it a name (e.g., scalekit-agent), and click Create.
      • Copy both the Token Name and Token Secret — the secret is shown only once.



      Find your site content URL

      Your site content URL is the identifier in your Tableau browser URL. For https://prod-in-a.online.tableau.com/#/site/mycompany-1234567, the site content URL is mycompany-1234567. Leave it blank if you use the Default site.

   2. Create a connection in Scalekit

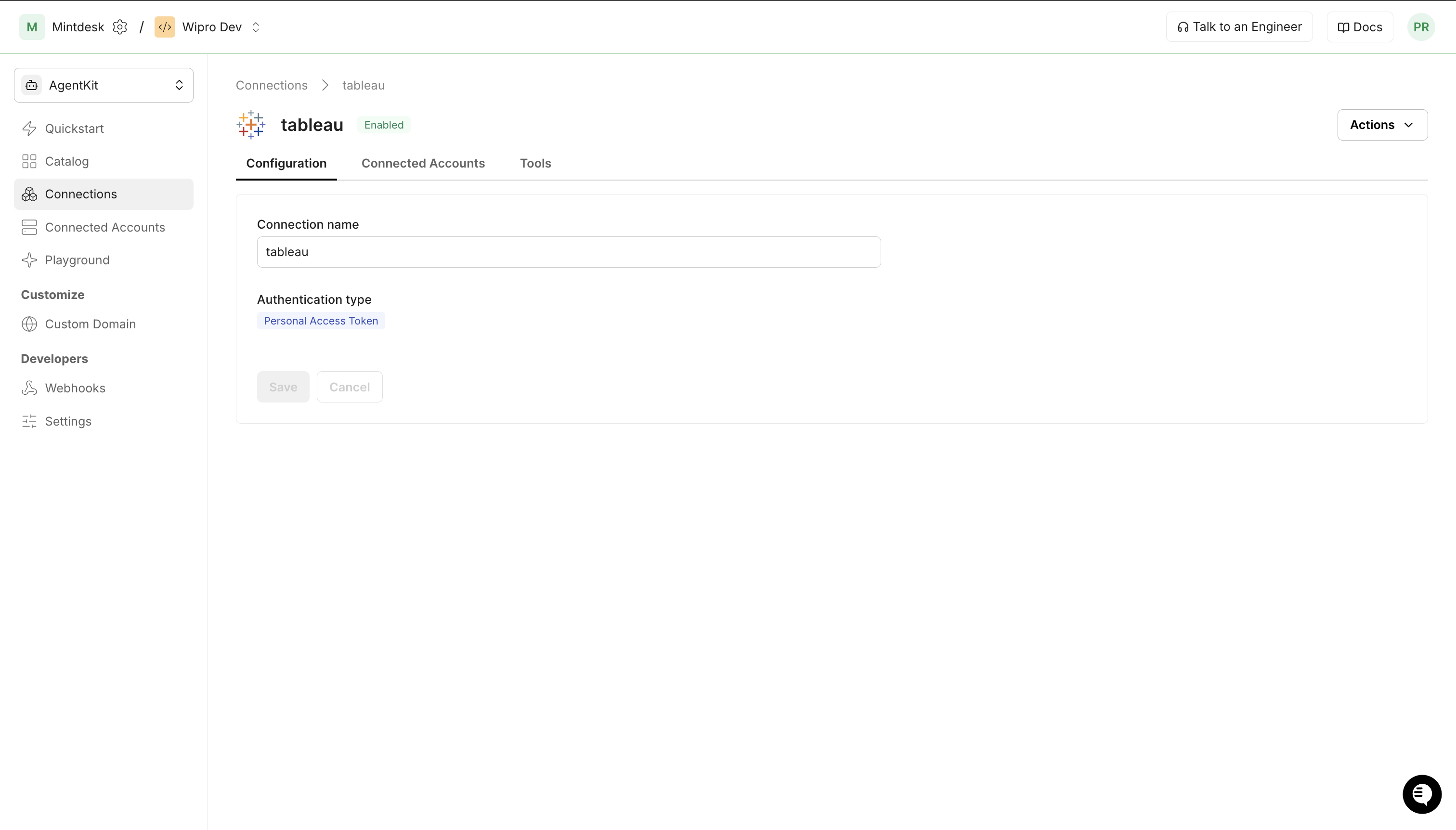

      • In Scalekit dashboard, go to Agent Auth → Create Connection.
      • Search for Tableau and click Create.
      • Note the Connection name — use this as connection_name in your code (e.g., tableau).
      • Click Save.



   3. Add a connected account

      A connected account links a user in your system to their Tableau PAT credentials. Scalekit uses these to sign in and refresh the session automatically.

      Via dashboard (for testing)

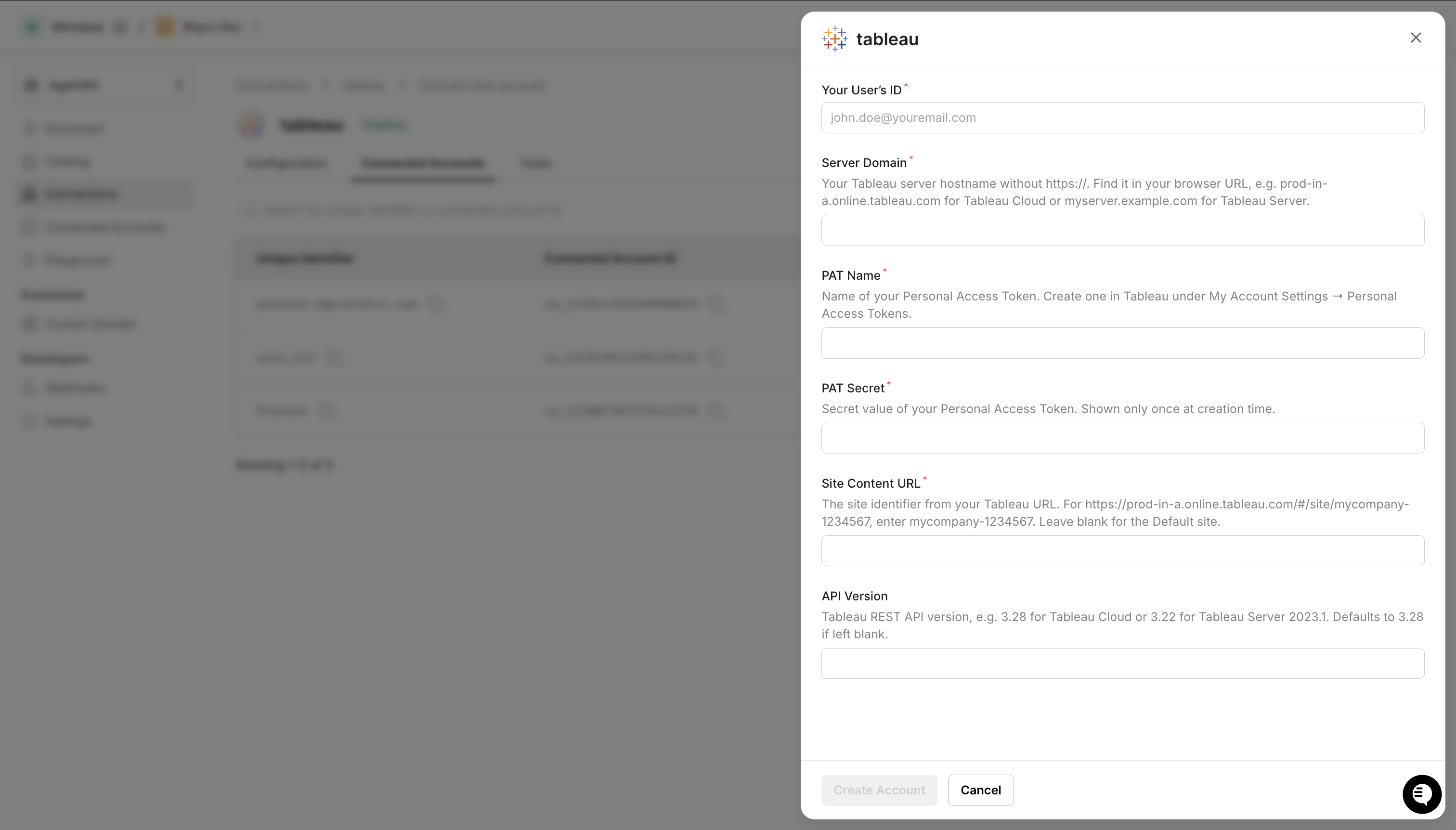

      • Open the connection → Connected Accounts tab → Add account.
      • Fill in:
        • Your User’s ID — any identifier for this user (e.g., user_123)
        • Server Domain — your Tableau hostname without https:// (e.g., prod-in-a.online.tableau.com)
        • PAT Name — the token name from step 1
        • PAT Secret — the token secret from step 1
        • Site Content URL — the site identifier from your Tableau URL (leave blank for the Default site)
      • Click Save.



      Via API (for production)

      Node.js

      await scalekit.actions.upsertConnectedAccount({
        connectionName: 'tableau',
        identifier: 'user_123',
        credentials: {
          domain: 'prod-in-a.online.tableau.com',
          pat_name: 'scalekit-agent',
          pat_secret: process.env.TABLEAU_PAT_SECRET,
          site_content_url: 'mycompany-1234567', // omit for Default site
        },
      });

      Python

      scalekit_client.actions.upsert_connected_account(
          connection_name="tableau",
          identifier="user_123",
          credentials={
              "domain": "prod-in-a.online.tableau.com",
              "pat_name": "scalekit-agent",
              "pat_secret": os.getenv("TABLEAU_PAT_SECRET"),
              "site_content_url": "mycompany-1234567",  # omit for Default site
          },
      )

      Automatic token refresh

      Scalekit refreshes the session token before every tool call using the stored PAT credentials. Tokens are renewed automatically when they are within 5 minutes of expiry — you do not need to manage refresh logic in your code.

4. Make your first call

   Node.js

   quickstart.ts

   import { ScalekitClient } from '@scalekit-sdk/node'
   import 'dotenv/config'

   const scalekit = new ScalekitClient(
     process.env.SCALEKIT_ENV_URL,
     process.env.SCALEKIT_CLIENT_ID,
     process.env.SCALEKIT_CLIENT_SECRET,
   )
   const actions = scalekit.actions

   const connector = 'tableau'
   const identifier = 'user_123'

   // Make your first call
   const result = await actions.executeTool({
     connector,
     identifier,
     toolName: 'tableau_datasources_list',
     toolInput: {},
   })
   console.log(result)

   Python

   quickstart.py

   import os
   from scalekit.client import ScalekitClient
   from dotenv import load_dotenv
   load_dotenv()

   scalekit_client = ScalekitClient(
       env_url=os.getenv("SCALEKIT_ENV_URL"),
       client_id=os.getenv("SCALEKIT_CLIENT_ID"),
       client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
   )
   actions = scalekit_client.actions

   connection_name = "tableau"
   identifier = "user_123"

   # Make your first call
   result = actions.execute_tool(
       tool_input={},
       tool_name="tableau_datasources_list",
       connection_name=connection_name,
       identifier=identifier,
   )
   print(result)

What you can do

Connect this agent connector to let your agent:

• Update workbook, user, schedule — Update a Tableau workbook’s name, description, owner, project (move it), tab visibility, or certification status
• List workbook permissions, sites, schedules — Retrieve the capability grants (permissions) defined for a specific Tableau workbook, showing which users and groups can view, edit, or manage it
• Add workbook permissions, project permissions — Grant a user or group specific capabilities (permissions) on a Tableau workbook, such as Read, Write, or ExportData
• Delete workbook permission, schedule, workbook — Revoke a single capability grant for a user or group on a Tableau workbook
• Get view pdf, view image, view data — Render a Tableau view as a PDF document
• Create schedule, project, group — Create a new server schedule for running extract refreshes, subscriptions, or flow tasks on a recurring basis

Common workflows

The site ID (site LUID) is resolved automatically from the connected account after sign-in. You do not pass site_id to tool calls. For proxy API calls that require a site ID in the URL path, call tableau_session_get once to retrieve it.

Proxy API call

Use the Scalekit proxy to call any Tableau REST API endpoint directly. Binary downloads (PNG, PDF, Excel, .twbx, .tdsx) must use the proxy — use tableau_session_get to retrieve the site ID for the URL path:

Node.js

// Get site ID once (needed for proxy URL construction)
const session = await actions.executeTool({
  toolName: 'tableau_session_get',
  connector: 'tableau',
  identifier: 'user_123',
  toolInput: {},
});
const siteId = session.session.site.id;

// Export a view as PNG
const imageBytes = await actions.request({
  connectionName: 'tableau',
  identifier: 'user_123',
  path: `/api/3.28/sites/${siteId}/views/${viewId}/image`,
  method: 'GET',
  queryParams: { resolution: 'high' },
});

// Export a view as PDF
const pdfBytes = await actions.request({
  connectionName: 'tableau',
  identifier: 'user_123',
  path: `/api/3.28/sites/${siteId}/views/${viewId}/pdf`,
  method: 'GET',
  queryParams: { type: 'a4', orientation: 'landscape' },
});

// Download a workbook (.twbx)
const workbookBytes = await actions.request({
  connectionName: 'tableau',
  identifier: 'user_123',
  path: `/api/3.28/sites/${siteId}/workbooks/${workbookId}/content`,
  method: 'GET',
});

// Download a data source (.tdsx)
const datasourceBytes = await actions.request({
  connectionName: 'tableau',
  identifier: 'user_123',
  path: `/api/3.28/sites/${siteId}/datasources/${datasourceId}/content`,
  method: 'GET',
});

Python

# Get site ID once (needed for proxy URL construction)
session = actions.execute_tool(
    tool_name="tableau_session_get",
    connection_name='tableau',
    identifier='user_123',
    tool_input={},
)
site_id = session.data["session"]["site"]["id"]

# Export a view as PNG
image_response = actions.request(
    connection_name='tableau',
    identifier='user_123',
    path=f"/api/3.28/sites/{site_id}/views/{view_id}/image",
    method="GET",
    query_params={"resolution": "high"},
)
with open("dashboard.png", "wb") as f:
    f.write(image_response.content)

# Export a view as PDF
pdf_response = actions.request(
    connection_name='tableau',
    identifier='user_123',
    path=f"/api/3.28/sites/{site_id}/views/{view_id}/pdf",
    method="GET",
    query_params={"type": "a4", "orientation": "landscape"},
)
with open("dashboard.pdf", "wb") as f:
    f.write(pdf_response.content)

# Download a workbook (.twbx)
workbook_response = actions.request(
    connection_name='tableau',
    identifier='user_123',
    path=f"/api/3.28/sites/{site_id}/workbooks/{workbook_id}/content",
    method="GET",
)
with open("workbook.twbx", "wb") as f:
    f.write(workbook_response.content)

# Download a data source (.tdsx)
datasource_response = actions.request(
    connection_name='tableau',
    identifier='user_123',
    path=f"/api/3.28/sites/{site_id}/datasources/{datasource_id}/content",
    method="GET",
)
with open("datasource.tdsx", "wb") as f:
    f.write(datasource_response.content)

No auth header needed

The Scalekit proxy automatically injects the X-Tableau-Auth session token header. You only provide the path and method.

Browse workbooks and views

Node.js

// List all workbooks on the site
const workbooks = await actions.executeTool({
  toolName: 'tableau_workbooks_list',
  connector: 'tableau',
  identifier: 'user_123',
  toolInput: {},
});
// workbooks.workbooks.workbook[] — each has id, name, contentUrl, project

// Search for a workbook by name
const found = await actions.executeTool({
  toolName: 'tableau_workbook_search',
  connector: 'tableau',
  identifier: 'user_123',
  toolInput: { name: 'SalesReport' },
});

// List all views within a workbook
const workbookId = workbooks.workbooks.workbook[0].id;
const views = await actions.executeTool({
  toolName: 'tableau_workbook_views_list',
  connector: 'tableau',
  identifier: 'user_123',
  toolInput: { workbook_id: workbookId },
});
// views.views.view[] — each has id, name, contentUrl

Python

# List all workbooks on the site
workbooks = actions.execute_tool(
    tool_name="tableau_workbooks_list",
    connection_name='tableau',
    identifier='user_123',
    tool_input={},
)
# workbooks["workbooks"]["workbook"] — each has id, name, contentUrl, project

# Search for a workbook by name
found = actions.execute_tool(
    tool_name="tableau_workbook_search",
    connection_name='tableau',
    identifier='user_123',
    tool_input={"name": "SalesReport"},
)

# List all views within a workbook
workbook_id = workbooks["workbooks"]["workbook"][0]["id"]
views = actions.execute_tool(
    tool_name="tableau_workbook_views_list",
    connection_name='tableau',
    identifier='user_123',
    tool_input={"workbook_id": workbook_id},
)
# views["views"]["view"] — each has id, name, contentUrl

Sign out

Call tableau_auth_signout to invalidate the session token when the agent session ends:

Node.js

await actions.executeTool({
  toolName: 'tableau_auth_signout',
  connector: 'tableau',
  identifier: 'user_123',
  toolInput: {},
});
// The stored session token is now invalid — Scalekit will refresh on next call

Python

actions.execute_tool(
    tool_name="tableau_auth_signout",
    connection_name='tableau',
    identifier='user_123',
    tool_input={},
)
# The stored session token is now invalid — Scalekit will refresh on next call

Getting resource IDs

Most Tableau tools require one or more resource LUIDs. The site ID is resolved automatically by Scalekit after sign-in — you do not pass it to tool calls. Always fetch other IDs from the API — never guess or hard-code them.

Resource	Tool to get ID	Field in response
Workbook ID	tableau_workbooks_list or tableau_workbook_search	workbooks.workbook[].id
View ID	tableau_views_list or tableau_workbook_views_list	views.view[].id
Data Source ID	tableau_datasources_list	datasources.datasource[].id
Project ID	tableau_projects_list	projects.project[].id
User ID	tableau_users_list	users.user[].id
Group ID	tableau_groups_list	groups.group[].id
Job ID	tableau_job_get (from background job operations)	job.id
Site ID (proxy only)	tableau_session_get	session.site.id

Recommended start sequence for any agent session:

1. tableau_workbooks_list           → discover workbooks
2. tableau_workbook_views_list      → discover views within a workbook
3. tableau_datasources_list         → discover data sources

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

tableau_auth_signout#Sign out of Tableau Server or Tableau Cloud, invalidating the current authentication token.0 params▾

Sign out of Tableau Server or Tableau Cloud, invalidating the current authentication token.

tableau_datasource_delete#Delete a published data source from a Tableau site. This action is permanent and also removes the associated data connection.1 param▾

Delete a published data source from a Tableau site. This action is permanent and also removes the associated data connection.

NameTypeRequiredDescription

datasource_idstringrequiredThe LUID of the data source to delete

tableau_datasource_get#Retrieve detailed information about a specific Tableau data source by its ID, including metadata, connections, project, and owner.1 param▾

Retrieve detailed information about a specific Tableau data source by its ID, including metadata, connections, project, and owner.

NameTypeRequiredDescription

datasource_idstringrequiredThe LUID of the data source to retrieve

tableau_datasource_permissions_list#Retrieve the capability grants (permissions) defined for a specific Tableau data source, showing which users and groups can view, edit, or manage it.1 param▾

Retrieve the capability grants (permissions) defined for a specific Tableau data source, showing which users and groups can view, edit, or manage it.

NameTypeRequiredDescription

datasource_idstringrequiredThe LUID of the data source to list permissions for

tableau_datasource_update#Update a Tableau published data source's name, owner, project (move it), or certification status. Only the fields you provide are changed.6 params▾

Update a Tableau published data source's name, owner, project (move it), or certification status. Only the fields you provide are changed.

NameTypeRequiredDescription

datasource_idstringrequiredThe LUID of the data source to update

certification_notestringoptionalNote explaining the certification status, shown to users

is_certifiedbooleanoptionalWhether the data source is marked as certified

namestringoptionalNew name for the data source

new_owner_idstringoptionalLUID of the user to set as the new owner

new_project_idstringoptionalLUID of the project to move the data source into

tableau_datasources_list#Retrieve a filtered, sorted list of published data sources on a Tableau site. Supports pagination and filtering by name, type, project, and owner.4 params▾

Retrieve a filtered, sorted list of published data sources on a Tableau site. Supports pagination and filtering by name, type, project, and owner.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:SalesData

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of data sources to return per page (max 1000)

sortstringoptionalSort expression, e.g. name:asc or updatedAt:desc

tableau_extract_refresh_task_run#Trigger a scheduled extract refresh task to run immediately instead of waiting for its next scheduled time. Returns the asynchronous job created to perform the refresh.1 param▾

Trigger a scheduled extract refresh task to run immediately instead of waiting for its next scheduled time. Returns the asynchronous job created to perform the refresh.

NameTypeRequiredDescription

task_idstringrequiredThe LUID of the extract refresh task to run now

tableau_extract_refresh_tasks_list#List the scheduled extract refresh tasks on a Tableau site, including their schedule and the workbook or data source each task refreshes. Use tableau_extract_refresh_task_run to trigger one immediately.4 params▾

List the scheduled extract refresh tasks on a Tableau site, including their schedule and the workbook or data source each task refreshes. Use tableau_extract_refresh_task_run to trigger one immediately.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. type:eq:RefreshExtractTask

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of tasks to return per page (max 1000)

sortstringoptionalSort expression, e.g. priority:asc

tableau_group_add_user#Add an existing Tableau site user to a group. The user must already be a member of the site before being added to a group.2 params▾

Add an existing Tableau site user to a group. The user must already be a member of the site before being added to a group.

NameTypeRequiredDescription

group_idstringrequiredThe LUID of the group to add the user to

user_idstringrequiredThe LUID of the user to add to the group

tableau_group_create#Create a new local group on a Tableau site. Groups simplify permission management by allowing you to assign permissions to multiple users simultaneously.2 params▾

Create a new local group on a Tableau site. Groups simplify permission management by allowing you to assign permissions to multiple users simultaneously.

NameTypeRequiredDescription

namestringrequiredName of the group to create

minimum_site_rolestringoptionalMinimum site role for users added to this group

tableau_group_remove_user#Remove a user from a Tableau site group. The user remains a member of the site but loses any permissions inherited from this group.2 params▾

Remove a user from a Tableau site group. The user remains a member of the site but loses any permissions inherited from this group.

NameTypeRequiredDescription

group_idstringrequiredThe LUID of the group to remove the user from

user_idstringrequiredThe LUID of the user to remove from the group

tableau_groups_list#Retrieve a filtered, sorted list of groups on a Tableau site. Groups are used to manage permissions for multiple users at once.4 params▾

Retrieve a filtered, sorted list of groups on a Tableau site. Groups are used to manage permissions for multiple users at once.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:Sales

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of groups to return per page (max 1000)

sortstringoptionalSort expression, e.g. name:asc

tableau_job_cancel#Cancel an asynchronous Tableau job that is currently queued or in progress, such as an extract refresh or flow run.1 param▾

Cancel an asynchronous Tableau job that is currently queued or in progress, such as an extract refresh or flow run.

NameTypeRequiredDescription

job_idstringrequiredThe LUID of the job to cancel

tableau_job_get#Retrieve the status and details of an asynchronous Tableau job, such as an extract refresh, workbook publish, or flow run. Use this to monitor long-running operations.1 param▾

Retrieve the status and details of an asynchronous Tableau job, such as an extract refresh, workbook publish, or flow run. Use this to monitor long-running operations.

NameTypeRequiredDescription

job_idstringrequiredThe LUID of the job to retrieve

tableau_jobs_list#Retrieve a filtered, sorted list of asynchronous jobs on a Tableau site. Jobs include extract refreshes, workbook publishes, data-driven alerts, and flow runs.4 params▾

Retrieve a filtered, sorted list of asynchronous jobs on a Tableau site. Jobs include extract refreshes, workbook publishes, data-driven alerts, and flow runs.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. status:eq:InProgress

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of jobs to return per page (max 1000)

sortstringoptionalSort expression, e.g. createdAt:desc

tableau_list_views#List views (individual sheets and dashboards) within a specific workbook, or all views across an entire Tableau site. Supports filtering by name or owner and pagination.5 params▾

List views (individual sheets and dashboards) within a specific workbook, or all views across an entire Tableau site. Supports filtering by name or owner and pagination.

NameTypeRequiredDescription

workbook_idstringrequiredThe LUID of the workbook to list views from. If omitted, lists all views on the site.

filterstringoptionalFilter expression using Tableau REST API filter syntax (e.g., name:eq:Sales Dashboard)

include_usage_statisticsbooleanoptionalInclude view usage statistics (total views count) in the response

page_numberintegeroptionalPage number to retrieve (1-based)

page_sizeintegeroptionalNumber of views to return per page (max 1000)

tableau_project_create#Create a new project on a Tableau site to organize workbooks, data sources, and flows. Optionally specify a parent project to create a nested project hierarchy.4 params▾

Create a new project on a Tableau site to organize workbooks, data sources, and flows. Optionally specify a parent project to create a nested project hierarchy.

NameTypeRequiredDescription

namestringrequiredName of the project to create

content_permissionsstringoptionalContent permission mode: ManagedByOwner or LockedToProject

descriptionstringoptionalDescription of the project

parent_project_idstringoptionalLUID of the parent project to create a nested project

tableau_project_delete#Delete a project from a Tableau site. This action is permanent. Content within the project may be moved to the Default project or deleted depending on server settings.1 param▾

Delete a project from a Tableau site. This action is permanent. Content within the project may be moved to the Default project or deleted depending on server settings.

NameTypeRequiredDescription

project_idstringrequiredThe LUID of the project to delete

tableau_project_permissions_add#Grant a user or group specific capabilities (permissions) on a Tableau project, such as Read, Write, or ProjectLeader. Capabilities are additive to any existing grants for that grantee.4 params▾

Grant a user or group specific capabilities (permissions) on a Tableau project, such as Read, Write, or ProjectLeader. Capabilities are additive to any existing grants for that grantee.

NameTypeRequiredDescription

capabilitiesarrayrequiredJSON array of capability grants to apply. Each item has a 'name' (e.g. Read, Write, ProjectLeader) and a 'mode' of Allow or Deny.

grantee_idstringrequiredThe LUID of the user or group to grant capabilities to

grantee_typestringrequiredWhether the grantee is a user or a group

project_idstringrequiredThe LUID of the project to grant permissions on

tableau_project_permissions_list#Retrieve the capability grants (permissions) defined for a specific Tableau project, showing which users and groups can view, publish to, or manage its contents.1 param▾

Retrieve the capability grants (permissions) defined for a specific Tableau project, showing which users and groups can view, publish to, or manage its contents.

NameTypeRequiredDescription

project_idstringrequiredThe LUID of the project to list permissions for

tableau_project_update#Update an existing project on a Tableau site. You can rename the project, change its description, content permissions, or move it to a different parent project.5 params▾

Update an existing project on a Tableau site. You can rename the project, change its description, content permissions, or move it to a different parent project.

NameTypeRequiredDescription

project_idstringrequiredThe LUID of the project to update

content_permissionsstringoptionalContent permission mode: ManagedByOwner or LockedToProject

descriptionstringoptionalNew description for the project

namestringoptionalNew name for the project

parent_project_idstringoptionalLUID of the parent project (set to move this project under a different parent)

tableau_projects_list#Retrieve a filtered, sorted list of projects on a Tableau site. Projects are used to organize workbooks, views, and data sources.4 params▾

Retrieve a filtered, sorted list of projects on a Tableau site. Projects are used to organize workbooks, views, and data sources.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:Marketing

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of projects to return per page (max 1000)

sortstringoptionalSort expression, e.g. name:asc

tableau_query_view#Run a structured query against a published Tableau data source using the VizQL Data Service API. Supports selecting fields, applying filters, sorting, and limiting rows. Returns JSON data. Available on Tableau Cloud and Tableau Server 2023.1+.5 params▾

Run a structured query against a published Tableau data source using the VizQL Data Service API. Supports selecting fields, applying filters, sorting, and limiting rows. Returns JSON data. Available on Tableau Cloud and Tableau Server 2023.1+.

NameTypeRequiredDescription

datasource_luidstringrequiredThe LUID of the published data source to query

fieldsstringrequiredJSON array of field objects to select, each with a fieldCaption property

filtersstringoptionalJSON array of filter conditions to apply to the query

max_rowsintegeroptionalMaximum number of rows to return from the query

sortstringoptionalJSON array of sort criteria applied to query results

tableau_schedule_create#Create a new server schedule for running extract refreshes, subscriptions, or flow tasks on a recurring basis. Requires server administrator privileges.6 params▾

Create a new server schedule for running extract refreshes, subscriptions, or flow tasks on a recurring basis. Requires server administrator privileges.

NameTypeRequiredDescription

frequencystringrequiredHow often the schedule runs

frequency_detailsobjectrequiredJSON object describing the recurrence details for the chosen frequency, matching Tableau's frequencyDetails shape. Example for Daily: {"start": "23:00:00"}. Example for Hourly: {"start": "07:00:00", "end": "23:00:00", "intervals": {"interval": [{"hours": "4"}]}}. Example for Weekly: {"start": "23:00:00", "intervals": {"interval": [{"weekDay": "Monday"}]}}.

namestringrequiredName of the schedule to create

execution_orderstringoptionalWhether tasks on this schedule run in parallel or one after another

priorityintegeroptionalPriority of the schedule relative to others (1-100). Lower numbers run first when resources are constrained.

schedule_typestringoptionalType of tasks this schedule can run

tableau_schedule_delete#Permanently delete a server schedule. Any extract refresh, subscription, or flow tasks tied to this schedule are removed. This action is irreversible and requires server administrator privileges.1 param▾

Permanently delete a server schedule. Any extract refresh, subscription, or flow tasks tied to this schedule are removed. This action is irreversible and requires server administrator privileges.

NameTypeRequiredDescription

schedule_idstringrequiredThe ID of the schedule to delete

tableau_schedule_update#Update an existing server schedule's name, priority, execution order, state, or recurrence details. Only the fields you provide are changed. Requires server administrator privileges.7 params▾

Update an existing server schedule's name, priority, execution order, state, or recurrence details. Only the fields you provide are changed. Requires server administrator privileges.

NameTypeRequiredDescription

schedule_idstringrequiredThe ID of the schedule to update

execution_orderstringoptionalWhether tasks on this schedule run in parallel or one after another

frequencystringoptionalHow often the schedule runs

frequency_detailsobjectoptionalJSON object describing the recurrence details for the chosen frequency, matching Tableau's frequencyDetails shape. Example: {"start": "23:00:00"}.

namestringoptionalNew name for the schedule

priorityintegeroptionalNew priority for the schedule relative to others (1-100)

statestringoptionalWhether the schedule is active or suspended

tableau_schedules_list#Retrieve a list of server schedules used to run extract refreshes, subscriptions, and flow tasks on a recurring basis. Requires server administrator privileges.2 params▾

Retrieve a list of server schedules used to run extract refreshes, subscriptions, and flow tasks on a recurring basis. Requires server administrator privileges.

NameTypeRequiredDescription

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of schedules to return per page (max 1000)

tableau_session_get#Returns information about the current authenticated session, including the site LUID, site name, and authenticated user details. Call this after tableau_auth_signin to retrieve the site_id needed for the connected account configuration.0 params▾

Returns information about the current authenticated session, including the site LUID, site name, and authenticated user details. Call this after tableau_auth_signin to retrieve the site_id needed for the connected account configuration.

tableau_site_get#Retrieve information about a specific Tableau site, including its name, content URL, status, storage quota, and user quota settings.1 param▾

Retrieve information about a specific Tableau site, including its name, content URL, status, storage quota, and user quota settings.

NameTypeRequiredDescription

include_usage_statisticsbooleanoptionalIf true, include view count and storage usage statistics

tableau_sites_list#Retrieve a list of all sites on a Tableau Server or Tableau Cloud pod. Requires server administrator privileges. Supports pagination and filtering.3 params▾

Retrieve a list of all sites on a Tableau Server or Tableau Cloud pod. Requires server administrator privileges. Supports pagination and filtering.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:Marketing

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of sites to return per page (max 1000)

tableau_user_add_to_site#Add a user to a Tableau site with a specified site role. If the user does not exist in the server, a new user account will be created.3 params▾

Add a user to a Tableau site with a specified site role. If the user does not exist in the server, a new user account will be created.

NameTypeRequiredDescription

namestringrequiredUsername of the user to add (e.g. john.doe or john.doe@example.com)

site_rolestringrequiredThe role to assign to the user on the site

auth_settingstringoptionalAuthentication type for the user, e.g. SAML or ServerDefault

tableau_user_get#Retrieve information about a specific user on a Tableau site, including their name, email, site role, and authentication settings.1 param▾

Retrieve information about a specific user on a Tableau site, including their name, email, site role, and authentication settings.

NameTypeRequiredDescription

user_idstringrequiredThe LUID of the user to retrieve

tableau_user_remove_from_site#Remove a user from a Tableau site. The user's content (workbooks, data sources) is reassigned to the site administrator.1 param▾

Remove a user from a Tableau site. The user's content (workbooks, data sources) is reassigned to the site administrator.

NameTypeRequiredDescription

user_idstringrequiredThe LUID of the user to remove from the site

tableau_user_update#Update a Tableau user's site role, full name, email, or authentication setting. Only the fields you provide are changed. Requires site or server administrator privileges.4 params▾

Update a Tableau user's site role, full name, email, or authentication setting. Only the fields you provide are changed. Requires site or server administrator privileges.

NameTypeRequiredDescription

user_idstringrequiredThe LUID of the user to update

emailstringoptionalNew email address for the user

full_namestringoptionalNew full name for the user

site_rolestringoptionalNew site role controlling the user's permission level on the site

tableau_users_list#Retrieve a filtered, sorted list of users added to a Tableau site. Supports pagination and filtering by name, site role, and other attributes.4 params▾

Retrieve a filtered, sorted list of users added to a Tableau site. Supports pagination and filtering by name, site role, and other attributes.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:john.doe

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of users to return per page (max 1000)

sortstringoptionalSort expression, e.g. name:asc

tableau_view_data_get#Retrieve the underlying summary data of a Tableau view as CSV, exactly as rendered by the view's current fields and filters. For flexible field selection and filtering against a published data source directly, use tableau_query_view instead.2 params▾

Retrieve the underlying summary data of a Tableau view as CSV, exactly as rendered by the view's current fields and filters. For flexible field selection and filtering against a published data source directly, use tableau_query_view instead.

NameTypeRequiredDescription

view_idstringrequiredThe LUID of the view to retrieve underlying data for

max_ageintegeroptionalMaximum age in minutes of cached data to accept before forcing a refresh. Minimum 1.

tableau_view_get#Retrieve detailed information about a specific Tableau view by its ID, including name, content URL, owner, workbook, project, and optional usage statistics.2 params▾

Retrieve detailed information about a specific Tableau view by its ID, including name, content URL, owner, workbook, project, and optional usage statistics.

NameTypeRequiredDescription

view_idstringrequiredThe LUID of the view to retrieve

include_usage_statisticsbooleanoptionalIf true, include view count and high-water-mark usage statistics

tableau_view_image_get#Render a Tableau view as an image (PNG or SVG). No existing tool can produce a visual snapshot of a view.4 params▾

Render a Tableau view as an image (PNG or SVG). No existing tool can produce a visual snapshot of a view.

NameTypeRequiredDescription

view_idstringrequiredThe LUID of the view to render as an image

formatstringoptionalImage format to render. 'svg' requires API version 3.29+.

max_ageintegeroptionalMaximum age in minutes of a cached image to accept before forcing a refresh. Minimum 1.

resolutionstringoptionalPixel density of the rendered image. Set to 'high' for a higher-resolution image.

tableau_view_pdf_get#Render a Tableau view as a PDF document. No existing tool can produce a print-ready export of a view.6 params▾

Render a Tableau view as a PDF document. No existing tool can produce a print-ready export of a view.

NameTypeRequiredDescription

view_idstringrequiredThe LUID of the view to render as a PDF

max_ageintegeroptionalMaximum age in minutes of a cached render to accept before forcing a refresh. Minimum 1.

orientationstringoptionalPage orientation for the PDF.

typestringoptionalPage size for the PDF.

viz_heightintegeroptionalHeight in pixels used to render the view before converting to PDF.

viz_widthintegeroptionalWidth in pixels used to render the view before converting to PDF.

tableau_views_list#Retrieve a filtered, sorted list of all views on a Tableau site. Supports pagination, filtering by name or owner, and sorting.5 params▾

Retrieve a filtered, sorted list of all views on a Tableau site. Supports pagination, filtering by name or owner, and sorting.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:SalesView

include_usage_statisticsbooleanoptionalIf true, include view count and high-water-mark usage statistics

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of views to return per page (max 1000)

sortstringoptionalSort expression, e.g. name:asc or viewCount:desc

tableau_workbook_connections_list#Returns the data connections for a published workbook, including connection type, server address, port, username, and whether embedded credentials are used.1 param▾

Returns the data connections for a published workbook, including connection type, server address, port, username, and whether embedded credentials are used.

NameTypeRequiredDescription

workbook_idstringrequiredThe LUID of the workbook whose connections to list

tableau_workbook_delete#Delete a workbook from a Tableau site. This action is permanent and also removes all views and associated data connections.1 param▾

Delete a workbook from a Tableau site. This action is permanent and also removes all views and associated data connections.

NameTypeRequiredDescription

workbook_idstringrequiredThe LUID of the workbook to delete

tableau_workbook_get#Retrieve detailed information about a specific Tableau workbook by its ID, including metadata, project, owner, tags, and optional usage statistics.2 params▾

Retrieve detailed information about a specific Tableau workbook by its ID, including metadata, project, owner, tags, and optional usage statistics.

NameTypeRequiredDescription

workbook_idstringrequiredThe LUID of the workbook to retrieve

include_usage_statisticsbooleanoptionalIf true, include view and high-water-mark usage statistics in the response

tableau_workbook_permission_delete#Revoke a single capability grant for a user or group on a Tableau workbook. Requires the grantee type, grantee ID, capability name, and its mode as currently granted.5 params▾

Revoke a single capability grant for a user or group on a Tableau workbook. Requires the grantee type, grantee ID, capability name, and its mode as currently granted.

NameTypeRequiredDescription

capability_modestringrequiredThe mode of the capability grant to revoke, as currently set (Allow or Deny)

capability_namestringrequiredThe name of the capability to revoke, e.g. Read, Write, ExportData

grantee_idstringrequiredThe LUID of the user or group whose capability is being revoked

grantee_typestringrequiredWhether the grantee is a user or a group

workbook_idstringrequiredThe LUID of the workbook to revoke the permission from

tableau_workbook_permissions_add#Grant a user or group specific capabilities (permissions) on a Tableau workbook, such as Read, Write, or ExportData. Capabilities are additive to any existing grants for that grantee.4 params▾

Grant a user or group specific capabilities (permissions) on a Tableau workbook, such as Read, Write, or ExportData. Capabilities are additive to any existing grants for that grantee.

NameTypeRequiredDescription

capabilitiesarrayrequiredJSON array of capability grants to apply. Each item has a 'name' (e.g. Read, Write, Delete, ExportData, ChangePermissions, ExportXml, ViewComments, AddComment, Filter, ViewUnderlyingData, ShareView, WebAuthoring, RunExplainData) and a 'mode' of Allow or Deny.

grantee_idstringrequiredThe LUID of the user or group to grant capabilities to

grantee_typestringrequiredWhether the grantee is a user or a group

workbook_idstringrequiredThe LUID of the workbook to grant permissions on

tableau_workbook_permissions_list#Retrieve the capability grants (permissions) defined for a specific Tableau workbook, showing which users and groups can view, edit, or manage it.1 param▾

Retrieve the capability grants (permissions) defined for a specific Tableau workbook, showing which users and groups can view, edit, or manage it.

NameTypeRequiredDescription

workbook_idstringrequiredThe LUID of the workbook to list permissions for

tableau_workbook_search#Search for workbooks on a Tableau site by name. Returns workbooks whose name matches the search term.3 params▾

Search for workbooks on a Tableau site by name. Returns workbooks whose name matches the search term.

NameTypeRequiredDescription

namestringrequiredThe workbook name to search for (exact match)

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of workbooks to return per page (max 1000)

tableau_workbook_update#Update a Tableau workbook's name, description, owner, project (move it), tab visibility, or certification status. Only the fields you provide are changed.6 params▾

Update a Tableau workbook's name, description, owner, project (move it), tab visibility, or certification status. Only the fields you provide are changed.

NameTypeRequiredDescription

workbook_idstringrequiredThe LUID of the workbook to update

descriptionstringoptionalNew description for the workbook

namestringoptionalNew name for the workbook

new_owner_idstringoptionalLUID of the user to set as the new owner

new_project_idstringoptionalLUID of the project to move the workbook into

show_tabsbooleanoptionalWhether sheet tabs are visible when viewing the workbook

tableau_workbooks_list#Retrieve a filtered, sorted list of workbooks on a specified Tableau site. Supports pagination and filtering by name, owner, project, and more.4 params▾

Retrieve a filtered, sorted list of workbooks on a specified Tableau site. Supports pagination and filtering by name, owner, project, and more.

NameTypeRequiredDescription

filterstringoptionalFilter expression to narrow results, e.g. name:eq:SalesReport

page_numberintegeroptionalPage number for pagination (1-based)

page_sizeintegeroptionalNumber of workbooks to return per page (max 1000)

sortstringoptionalSort expression, e.g. name:asc or updatedAt:desc
