Google Looker connector

OAuth 2.0AnalyticsProductivity

Connect to Google Looker or self-hosted Looker Core. Browse dashboards, run Looks, query LookML models, and access BI data programmatically.

Google Looker connector

Install the SDK
Section titled “Install the SDK”
- Node.js
- Python
Terminal window
1 npm install @scalekit-sdk/node
Terminal window
1 pip install scalekit
Full SDK reference: Node.js | Python
Set your credentials
Section titled “Set your credentials”

Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.
.env
```
SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
SCALEKIT_CLIENT_ID=<your-client-id>
SCALEKIT_CLIENT_SECRET=<your-client-secret>
```
Set up the connector
Section titled “Set up the connector”

Register your Google Looker credentials with Scalekit so it handles the token lifecycle. You do this once per environment.
Dashboard setup steps
Register your Scalekit environment with the Google Looker connector so Scalekit handles the OAuth flow and token lifecycle for you. The connection name you create will be used to identify and invoke the connection programmatically.

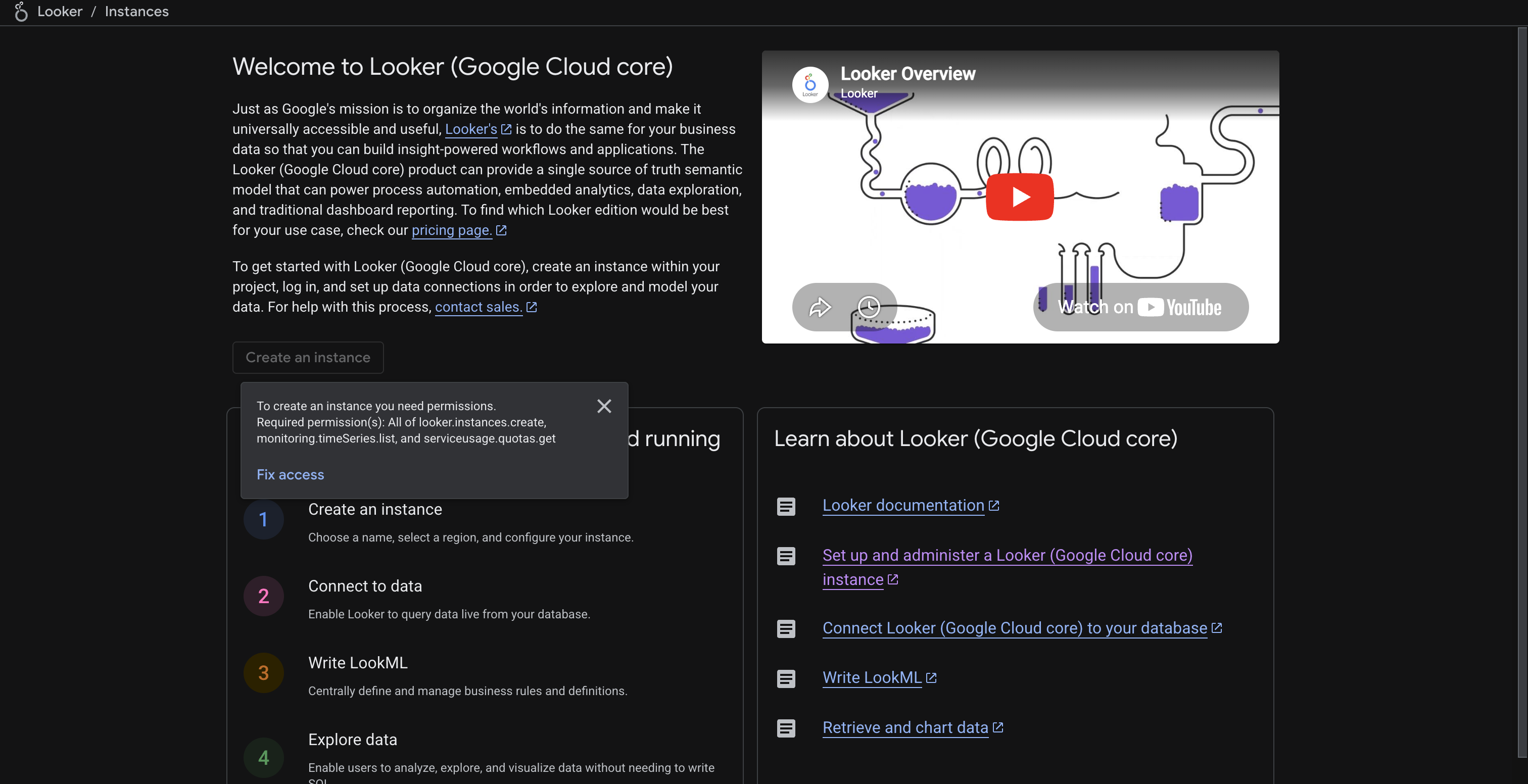

1. Create a Google Looker instance

  Google Looker (Google Cloud core) runs as a managed service in your Google Cloud project. You must create an instance before setting up OAuth credentials.
  - Go to Google Cloud Console and select or create a project.
  - In the navigation menu, go to Looker (or search for “Looker” in the search bar).
  - Click Create Instance and follow the setup wizard. Note your instance hostname — it will look like your-company.cloud.looker.com. You will need this when adding connected accounts in Scalekit.
  A new Looker instance can take 30–60 minutes to provision. Wait until the status shows Active before proceeding.
2. Create OAuth credentials in Google Cloud Console

  Google Looker uses Google OAuth 2.0. You need OAuth client credentials from the same Google Cloud project that hosts your Looker instance.
  - In Google Cloud Console, go to APIs & Services > Credentials.
  - Click Create Credentials > OAuth client ID.
  - Select Web application as the application type.
  - Copy the redirect URI from Scalekit (see next step) and paste it under Authorized redirect URIs.
  - Click Create. Copy the Client ID and Client Secret.
  Open the Scalekit dashboard (step 3) to copy the redirect URI before creating the OAuth client. You can always edit the OAuth client to add the URI after creation.
3. Add credentials in Scalekit

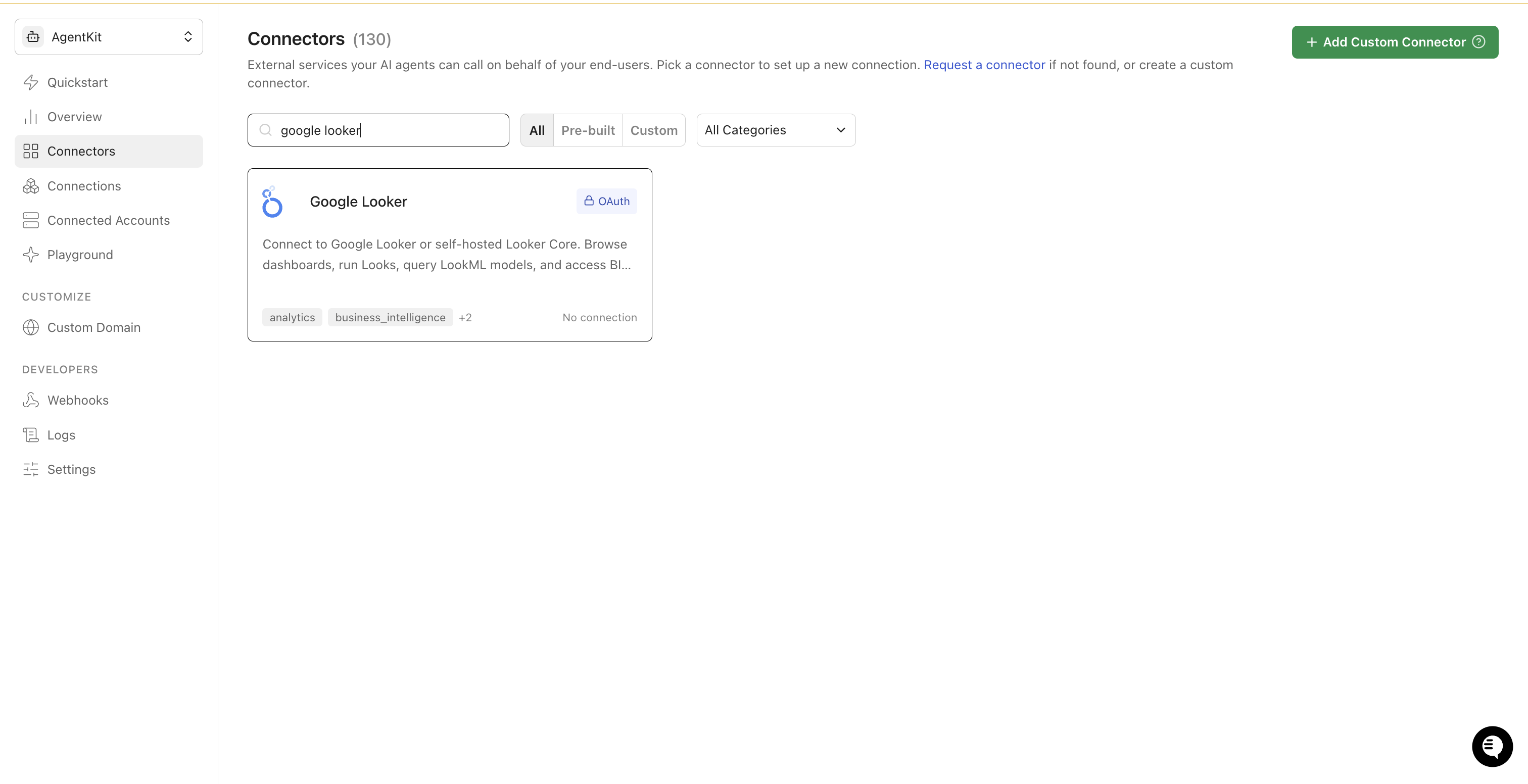

  - In Scalekit dashboard, go to AgentKit > Connections > Create Connection. Search for Google Looker and click Create.

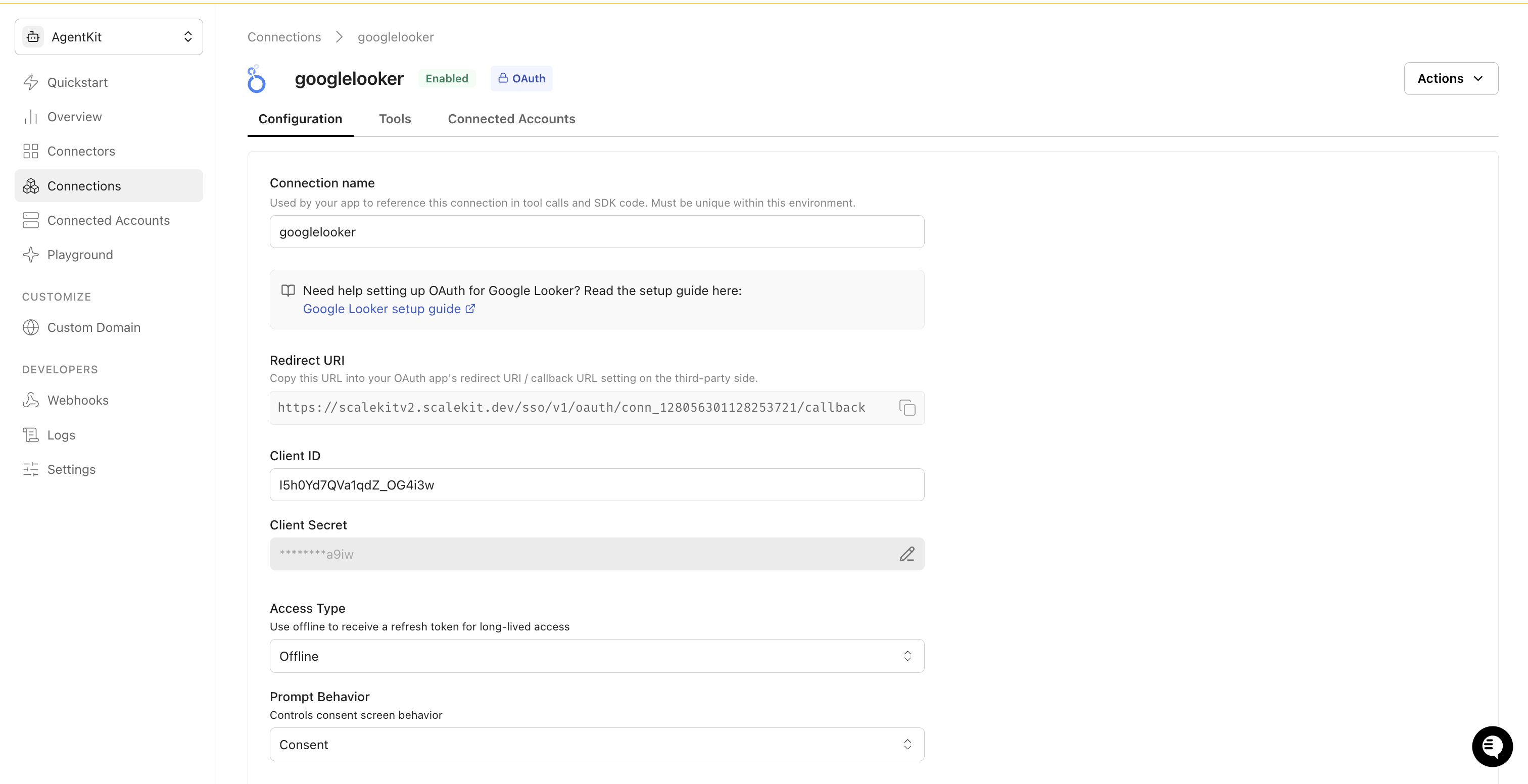

  - Copy the Redirect URI shown on the configuration page. Go back to Google Cloud Console and add this URI to your OAuth client’s authorized redirect URIs.
  - Return to Scalekit and enter your credentials:
    - Client ID (from Google Cloud Console)
    - Client Secret (from Google Cloud Console)
  - Keep Access Type set to Offline to receive a refresh token for long-lived access.
  - Click Save.
4. Add a connected account

  Each end-user who connects their Looker instance needs a connected account. The Looker Instance Hostname is required — this is the hostname of the Looker instance the user is accessing (without https://), for example your-company.cloud.looker.com.

  Via the Scalekit dashboard (for testing)
  - Go to Connected Accounts > Add Account.
  - Enter the User ID and Looker Instance Hostname, then click Save.
  - Complete the Google OAuth flow in the popup to authorize access.
  Via the SDK (for production)

  Generate an authorization link and redirect your user to it. After the user authorizes, Scalekit stores the token automatically.
  1 const { link } = await scalekit.actions.getAuthorizationLink({ 2 connectionName: 'googlelooker', 3 identifier: 'user_123', 4 state: { instanceUrl: 'your-company.cloud.looker.com' }, 5 }) 6 // Redirect the user to `link` to complete OAuth

1
import { ScalekitClient } from '@scalekit-sdk/node'
2
import 'dotenv/config'
3

4
const scalekit = new ScalekitClient(
5
  process.env.SCALEKIT_ENV_URL,
6
  process.env.SCALEKIT_CLIENT_ID,
7
  process.env.SCALEKIT_CLIENT_SECRET,
8
)
9
const actions = scalekit.actions
10

11
const connector = 'googlelooker'
12
const identifier = 'user_123'
13

14
// Generate an authorization link for the user
15
const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
16
console.log('Authorize Google Looker:', link)
17
process.stdout.write('Press Enter after authorizing...')
18
await new Promise(r => process.stdin.once('data', r))
19

20
// Make your first call
21
const result = await actions.executeTool({
22
  connector,
23
  identifier,
24
  toolName: 'googlelooker_get_current_user',
25
  toolInput: {},
26
})
27
console.log(result)

1
import os
2
from scalekit.client import ScalekitClient
3
from dotenv import load_dotenv
4
load_dotenv()
5

6
scalekit_client = ScalekitClient(
7
    env_url=os.getenv("SCALEKIT_ENV_URL"),
8
    client_id=os.getenv("SCALEKIT_CLIENT_ID"),
9
    client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
10
)
11
actions = scalekit_client.actions
12

13
connection_name = "googlelooker"
14
identifier = "user_123"
15

16
# Generate an authorization link for the user
17
link_response = actions.get_authorization_link(
18
    connection_name=connection_name,
19
    identifier=identifier,
20
)
21
print("Authorize Google Looker:", link_response.link)
22
input("Press Enter after authorizing...")
23

24
# Make your first call
25
result = actions.execute_tool(
26
    tool_input={},
27
    tool_name="googlelooker_get_current_user",
28
    connection_name=connection_name,
29
    identifier=identifier,
30
)
31
print(result)

What you can do

Connect this agent connector to let your agent:

Update look, folder, dashboard — Update one or more fields on an existing Look by ID: retitle it, move it to a different folder, point it at a different saved query, or soft-delete/restore it via the deleted flag
Search looks, dashboards — Search Looks by title or folder instead of listing every Look in the instance
Run scheduled plan once, query, look — Immediately run an existing, already-saved Scheduled Plan one time and deliver it to its configured destinations, without waiting for its next scheduled occurrence and without changing that schedule
List scheduled plans, models, looks — List Scheduled Plans
Get scheduled plan, query, look — Retrieve a single Scheduled Plan by ID: its schedule (crontab/datagroup), destinations, and the dashboard, Look, LookML dashboard, or query it delivers
Delete scheduled plan, look, folder — Permanently delete a Scheduled Plan by ID, stopping all future scheduled deliveries

Common workflows

Google OAuth consent screen verification

Before you use your own Google OAuth credentials in production, understand what end users see on Google’s consent screen when they authorize a connected account.

Audience type	Consent screen behavior	When to use
Internal	Shows your App Name and logo from Branding settings	Only users in your Google Workspace or Cloud Identity organization can authorize the connector
External	Shows `{env_name}.scalekit.dev` until Google verifies your app	Any user with a Google account can authorize the connector

Why External is required for most AgentKit connectors:

Internal restricts authorization to users in your Google Workspace or Cloud Identity organization. Users with @gmail.com or other Google accounts outside your organization cannot complete OAuth.
External is required when end users outside your organization authorize tool access through connected accounts.
Organization-managed OAuth clients follow the same rules as personal or developer OAuth clients. Switching to an org-owned client does not bypass Google verification.
Until Google completes verification of your External app, users see scalekit.dev on the consent screen. After verification, your App Name and logo appear.

During development:

Add Test users under APIs & Services → OAuth consent screen while publishing status is Testing.
On unverified apps, users can click Advanced → Go to app (unsafe) to proceed during testing.
Google Workspace admins may need to allowlist your OAuth client.

For Google’s verification requirements and timeline, refer to Google’s OAuth consent screen verification guide.

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

googlelooker_create_dashboard#Create a new, empty Looker dashboard. Requires a title and the ID of the folder it should live in; a dashboard's title must be unique within that destination folder. Add tiles afterward from the Looker UI or the dashboard element APIs.5 params

Create a new, empty Looker dashboard. Requires a title and the ID of the folder it should live in; a dashboard's title must be unique within that destination folder. Add tiles afterward from the Looker UI or the dashboard element APIs.

NameTypeRequiredDescription

folder_idstringrequiredID of the folder this dashboard should be created in

titlestringrequiredTitle for the new dashboard

background_colorstringoptionalBackground color for the dashboard, as a hex string

crossfilter_enabledbooleanoptionalEnable cross-filtering between tiles on this dashboard

descriptionstringoptionalOptional description of the dashboard

googlelooker_create_folder#Create a new folder (space) to organize dashboards and Looks. Provide a parent_id to nest it under an existing folder; omit it to create a root-level folder (permissions permitting). The folder name must be unique among its siblings.2 params

Create a new folder (space) to organize dashboards and Looks. Provide a parent_id to nest it under an existing folder; omit it to create a root-level folder (permissions permitting). The folder name must be unique among its siblings.

NameTypeRequiredDescription

namestringrequiredName for the new folder

parent_idstringoptionalID of the parent folder to nest this folder under

googlelooker_create_look#Save a query as a new Look so it can be revisited, shared, and run with Run Look. Create the underlying query first with Create Query, then pass its query ID here.4 params

Save a query as a new Look so it can be revisited, shared, and run with Run Look. Create the underlying query first with Create Query, then pass its query ID here.

NameTypeRequiredDescription

query_idstringrequiredThe ID of the query this Look should run

titlestringrequiredTitle for the new Look

descriptionstringoptionalOptional description of the Look

folder_idstringoptionalFolder to save the Look into. Defaults to the user's personal folder.

googlelooker_create_query#Define and persist a query against a LookML model and explore, without running it. Returns a query ID (and slug) you can execute repeatedly with Run Query or attach to a new Look with Create Look, instead of resending the full query definition each time.6 params

Define and persist a query against a LookML model and explore, without running it. Returns a query ID (and slug) you can execute repeatedly with Run Query or attach to a new Look with Create Look, instead of resending the full query definition each time.

NameTypeRequiredDescription

fieldsstringrequiredComma-separated list of LookML field names to include (e.g., orders.count,orders.total_revenue)

modelstringrequiredThe LookML model name to query against

viewstringrequiredThe explore (view) name within the model to query

filtersobjectoptionalFilter conditions as a JSON object (field_name: filter_value pairs)

limitintegeroptionalMaximum number of rows the query returns when run

sortsstringoptionalComma-separated list of sort fields with optional direction (e.g., orders.total_revenue desc)

googlelooker_create_scheduled_plan#Create a recurring (or one-shot) Scheduled Plan that runs a dashboard, Look, LookML dashboard, or query and delivers the results to one or more destinations (email, webhook, S3, SFTP, etc). Set exactly one of dashboard_id, look_id, lookml_dashboard_id, or query_id as the content to deliver, and provide a crontab or datagroup to control when it runs.14 params

Create a recurring (or one-shot) Scheduled Plan that runs a dashboard, Look, LookML dashboard, or query and delivers the results to one or more destinations (email, webhook, S3, SFTP, etc). Set exactly one of dashboard_id, look_id, lookml_dashboard_id, or query_id as the content to deliver, and provide a crontab or datagroup to control when it runs.

NameTypeRequiredDescription

namestringrequiredName of this scheduled plan

scheduled_plan_destinationarrayrequiredArray of destination objects describing where and how to deliver the results

crontabstringoptionalVixie-style crontab specifying when this plan runs

dashboard_idstringoptionalID of the dashboard this plan should run and deliver

enabledbooleanoptionalWhether this scheduled plan is enabled

filters_stringstringoptionalQuery string of filter values to run the dashboard or Look with

look_idstringoptionalID of the Look this plan should run and deliver

lookml_dashboard_idstringoptionalID (slug) of the LookML dashboard this plan should run and deliver

query_idstringoptionalID of the saved query this plan should run and deliver

require_changebooleanoptionalOnly deliver when the results changed since the last run

require_no_resultsbooleanoptionalOnly deliver when the dashboard or Look returns no results

require_resultsbooleanoptionalOnly deliver when the dashboard or Look returns results

run_oncebooleanoptionalWhether this plan should run only once and then disable itself

timezonestringoptionalIANA timezone used to interpret the crontab

googlelooker_delete_dashboard#Permanently delete a Looker dashboard by ID. If the dashboard has not already been soft-deleted (trashed via Update Dashboard's deleted flag), your Looker instance may require that step first depending on configuration. This action cannot be undone.1 param

Permanently delete a Looker dashboard by ID. If the dashboard has not already been soft-deleted (trashed via Update Dashboard's deleted flag), your Looker instance may require that step first depending on configuration. This action cannot be undone.

NameTypeRequiredDescription

dashboard_idstringrequiredThe ID of the Looker dashboard to delete

googlelooker_delete_folder#Permanently delete a folder by ID, along with all Looks and dashboards it directly contains. This action cannot be undone — make sure nothing of value remains in the folder before deleting.1 param

Permanently delete a folder by ID, along with all Looks and dashboards it directly contains. This action cannot be undone — make sure nothing of value remains in the folder before deleting.

NameTypeRequiredDescription

folder_idstringrequiredThe ID of the folder to delete

googlelooker_delete_look#Permanently delete a Look by ID. This is a hard delete with no undo — unlike removing a Look from the Looker UI (which soft-deletes it), this call destroys the Look data immediately. To soft-delete instead, use Update Look with deleted set to true.1 param

Permanently delete a Look by ID. This is a hard delete with no undo — unlike removing a Look from the Looker UI (which soft-deletes it), this call destroys the Look data immediately. To soft-delete instead, use Update Look with deleted set to true.

NameTypeRequiredDescription

look_idstringrequiredThe numeric ID of the Look to delete

googlelooker_delete_scheduled_plan#Permanently delete a Scheduled Plan by ID, stopping all future scheduled deliveries. This action cannot be undone.1 param

Permanently delete a Scheduled Plan by ID, stopping all future scheduled deliveries. This action cannot be undone.

NameTypeRequiredDescription

scheduled_plan_idstringrequiredThe ID of the scheduled plan to delete

googlelooker_get_current_user#Retrieve the profile of the currently authenticated Looker user, including their ID, display name, email, and role IDs.1 param

Retrieve the profile of the currently authenticated Looker user, including their ID, display name, email, and role IDs.

NameTypeRequiredDescription

fieldsstringoptionalComma-separated list of user fields to include in the response

googlelooker_get_dashboard#Retrieve the full metadata of a Looker dashboard by its ID, including all tile definitions (charts, tables, text, filters), layout, linked Looks, and underlying queries.2 params

Retrieve the full metadata of a Looker dashboard by its ID, including all tile definitions (charts, tables, text, filters), layout, linked Looks, and underlying queries.

NameTypeRequiredDescription

dashboard_idstringrequiredThe ID of the Looker dashboard to retrieve

fieldsstringoptionalComma-separated list of dashboard fields to include in the response

googlelooker_get_folder#Retrieve a single folder by ID, including its name, parent folder, creator, and content counts. Use List Folders first to find a folder ID.2 params

Retrieve a single folder by ID, including its name, parent folder, creator, and content counts. Use List Folders first to find a folder ID.

NameTypeRequiredDescription

folder_idstringrequiredThe ID of the folder to retrieve

fieldsstringoptionalComma-separated list of folder fields to include in the response

googlelooker_get_look#Retrieve the metadata and definition of a saved Look by its ID: title, description, folder, owner, and underlying query ID. Use Get Look Results or Run Look to execute it and fetch data.2 params

Retrieve the metadata and definition of a saved Look by its ID: title, description, folder, owner, and underlying query ID. Use Get Look Results or Run Look to execute it and fetch data.

NameTypeRequiredDescription

look_idstringrequiredThe numeric ID of the Look to retrieve

fieldsstringoptionalComma-separated list of Look fields to include in the response

googlelooker_get_look_results#Run a saved Look and return results in the specified format. Executes the Look's underlying query against the connected database. Use result_format to control the output: json for structured data, csv for tabular export, xlsx for Excel.14 params

Run a saved Look and return results in the specified format. Executes the Look's underlying query against the connected database. Use result_format to control the output: json for structured data, csv for tabular export, xlsx for Excel.

NameTypeRequiredDescription

look_idstringrequiredThe numeric ID of the Look to fetch results from

result_formatstringrequiredDesired output format for results. Accepted values: json, json_detail, json_bi, csv, txt, html, md, xlsx, sql, png, jpg

apply_formattingbooleanoptionalApply model-specified formatting to each result value

apply_visbooleanoptionalApply visualization options to results

cachebooleanoptionalGet results from cache if available. Set to false to force a fresh database query.

cache_onlybooleanoptionalRetrieve any results from cache even if expired

force_productionbooleanoptionalOverride development mode settings to force use of production models

generate_drill_linksbooleanoptionalGenerate drill links for json_detail format

image_heightintegeroptionalRender height for image formats (png, jpg)

image_widthintegeroptionalRender width for image formats (png, jpg)

limitintegeroptionalMaximum number of rows to return. May override the limit in the saved query.

path_prefixstringoptionalPrefix to use for drill links (URL encoded)

rebuild_pdtsbooleanoptionalRebuild Persistent Derived Tables (PDTs) used in the query

server_table_calcsbooleanoptionalPerform table calculations on query results server-side

googlelooker_get_query#Retrieve the definition of a previously created query by its ID: the model, explore, fields, filters, sorts, and row limit it was defined with. Use Run Query to execute it and fetch data, or Create Look to save it as a Look.2 params

Retrieve the definition of a previously created query by its ID: the model, explore, fields, filters, sorts, and row limit it was defined with. Use Run Query to execute it and fetch data, or Create Look to save it as a Look.

NameTypeRequiredDescription

query_idstringrequiredThe ID of the query to retrieve

fieldsstringoptionalComma-separated list of query fields to include in the response

googlelooker_get_scheduled_plan#Retrieve a single Scheduled Plan by ID: its schedule (crontab/datagroup), destinations, and the dashboard, Look, LookML dashboard, or query it delivers.2 params

Retrieve a single Scheduled Plan by ID: its schedule (crontab/datagroup), destinations, and the dashboard, Look, LookML dashboard, or query it delivers.

NameTypeRequiredDescription

scheduled_plan_idstringrequiredThe ID of the scheduled plan to retrieve

fieldsstringoptionalComma-separated list of scheduled plan fields to include in the response

googlelooker_list_dashboards#List all dashboards in a Looker instance that the caller has access to. Returns dashboard metadata including ID, title, folder, description, and last updated time.1 param

List all dashboards in a Looker instance that the caller has access to. Returns dashboard metadata including ID, title, folder, description, and last updated time.

NameTypeRequiredDescription

fieldsstringoptionalComma-separated list of dashboard fields to include in the response

googlelooker_list_explores#Retrieve a LookML model by name. The response includes an explores array listing all available explores in that model. Use fields=explores to limit the response to just explore metadata.2 params

Retrieve a LookML model by name. The response includes an explores array listing all available explores in that model. Use fields=explores to limit the response to just explore metadata.

NameTypeRequiredDescription

model_namestringrequiredThe LookML model name to retrieve explores for

fieldsstringoptionalComma-separated list of model fields to include in the response

googlelooker_list_folders#List all folders (spaces) in the Looker instance including personal folders. Returns folder ID, name, parent folder, creator, and content counts. Use folder IDs to filter Looks and Dashboards by location.1 param

List all folders (spaces) in the Looker instance including personal folders. Returns folder ID, name, parent folder, creator, and content counts. Use folder IDs to filter Looks and Dashboards by location.

NameTypeRequiredDescription

fieldsstringoptionalComma-separated list of folder fields to include in the response

googlelooker_list_looks#List all Looks the caller has access to. Returns Look metadata including ID, title, folder, owner, and last run time. Soft-deleted Looks are excluded.4 params

List all Looks the caller has access to. Returns Look metadata including ID, title, folder, owner, and last run time. Soft-deleted Looks are excluded.

NameTypeRequiredDescription

fieldsstringoptionalComma-separated list of Look fields to include in the response

limitintegeroptionalMaximum number of Looks to return

offsetintegeroptionalNumber of results to skip before returning any

sortsstringoptionalComma-separated list of fields to sort results by

googlelooker_list_models#List all available LookML models in the Looker instance. Returns each model's name, project, allowed database connections, and explore count. Use this to discover which models and explores are available before running queries.1 param

List all available LookML models in the Looker instance. Returns each model's name, project, allowed database connections, and explore count. Use this to discover which models and explores are available before running queries.

NameTypeRequiredDescription

fieldsstringoptionalComma-separated list of model fields to include in the response

googlelooker_list_scheduled_plans#List Scheduled Plans. By default returns the plans owned by the calling user; set all_users to true (requires admin permission) to list scheduled plans for every user in the instance.3 params

List Scheduled Plans. By default returns the plans owned by the calling user; set all_users to true (requires admin permission) to list scheduled plans for every user in the instance.

NameTypeRequiredDescription

all_usersbooleanoptionalReturn scheduled plans for all users instead of just the caller

fieldsstringoptionalComma-separated list of scheduled plan fields to include in the response

user_idstringoptionalReturn only scheduled plans owned by this user ID

googlelooker_run_inline_query#Execute an ad-hoc query against a LookML model and explore without saving it as a Look. Specify fields, filters, sorts, and a row limit. Useful for one-off analysis and agent-driven data exploration. Complex queries may take longer; 120s timeout applied.7 params

Execute an ad-hoc query against a LookML model and explore without saving it as a Look. Specify fields, filters, sorts, and a row limit. Useful for one-off analysis and agent-driven data exploration. Complex queries may take longer; 120s timeout applied.

NameTypeRequiredDescription

fieldsstringrequiredComma-separated list of LookML field names to include (e.g., orders.count,orders.total_revenue)

modelstringrequiredThe LookML model name to query against

result_formatstringrequiredOutput format for the query results. Accepted values: json, json_detail, json_bi, csv, txt, html, md, xlsx, sql, png, jpg

viewstringrequiredThe explore (view) name within the model to query

filtersobjectoptionalFilter conditions as a JSON object (field_name: filter_value pairs)

limitintegeroptionalMaximum number of rows to return from the query

sortsstringoptionalComma-separated list of sort fields with optional direction (e.g., orders.total_revenue desc)

googlelooker_run_look#Run a saved Look and return the results in the specified format. Executes the Look's underlying query against the connected database and returns the current data.14 params

Run a saved Look and return the results in the specified format. Executes the Look's underlying query against the connected database and returns the current data.

NameTypeRequiredDescription

look_idstringrequiredThe numeric ID of the Look to run

result_formatstringrequiredDesired output format for results. Accepted values: json, json_detail, csv, txt, html, md, xlsx, sql, png, jpg
