Box connector

OAuth 2.0ProductivityFiles & Documents

Box is a cloud content management platform. Manage files, folders, users, groups, collaborations, tasks, comments, webhooks, search, and more using the...

Box connector

  1. Install the SDK

    Section titled “Install the SDK”
    Terminal window
    npm install @scalekit-sdk/node

    Full SDK reference: Node.js | Python

  2. Set your credentials

    Section titled “Set your credentials”

    Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

    .env
    SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
    SCALEKIT_CLIENT_ID=<your-client-id>
    SCALEKIT_CLIENT_SECRET=<your-client-secret>

  3. Set up the connector

    Section titled “Set up the connector”

    Register your Box credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

    Dashboard setup steps

    Connect Box to Scalekit so your agent can manage files, folders, users, tasks, and more on behalf of your users. Box uses OAuth 2.0 — users authorize access through Box’s login flow, and Scalekit handles token storage and refresh automatically.

    You will need:

    • A Box developer account (free at developer.box.com)
    • Your Box OAuth app’s Client ID and Client Secret
    • The redirect URI from Scalekit to paste into Box

    1. Create a Box OAuth app

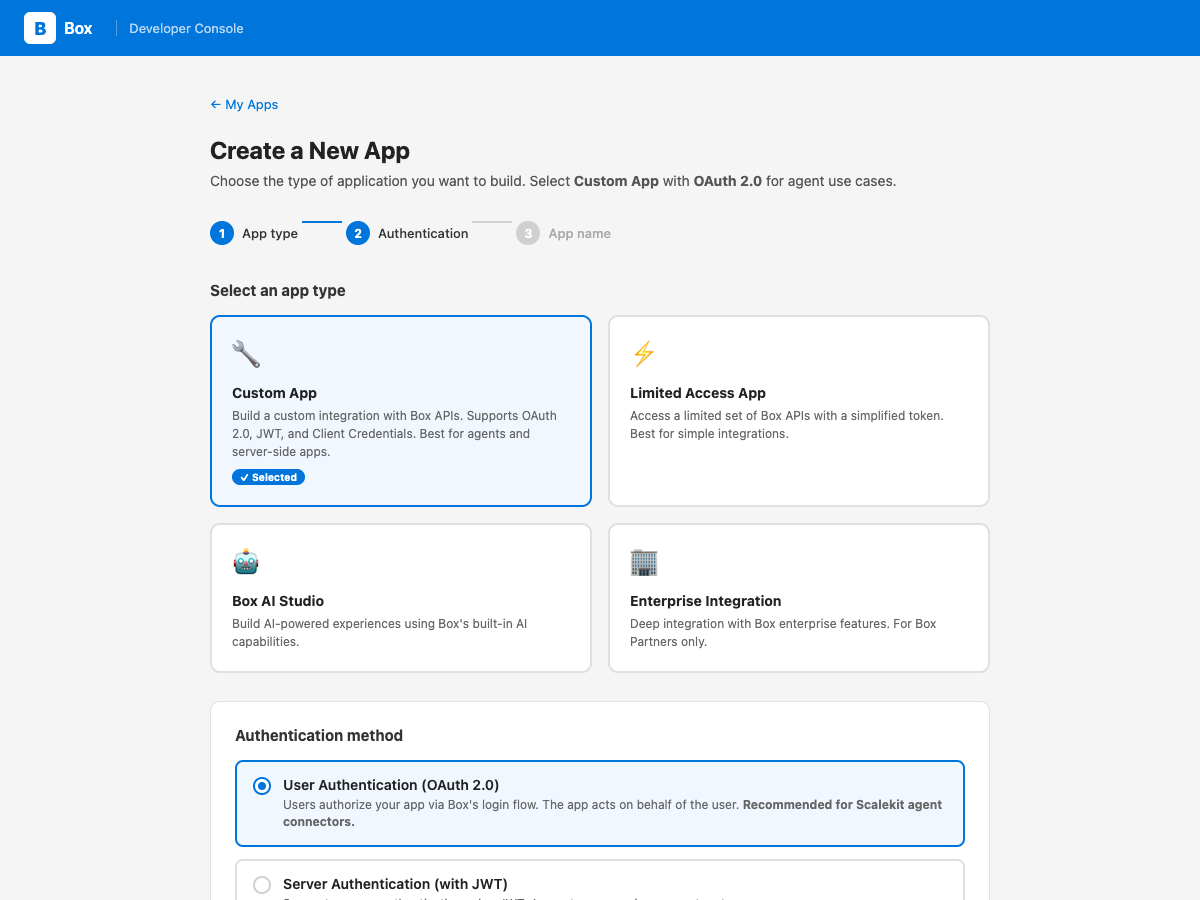

      • Go to the Box Developer Console and click Create New App.

      • Select Custom App as the app type.

      • Under authentication method, choose User Authentication (OAuth 2.0). This lets your agent act on behalf of each user who authorizes access.

      • Enter an app name (e.g. “My Agent App”) and click Create App.

    2. Copy the redirect URI from Scalekit

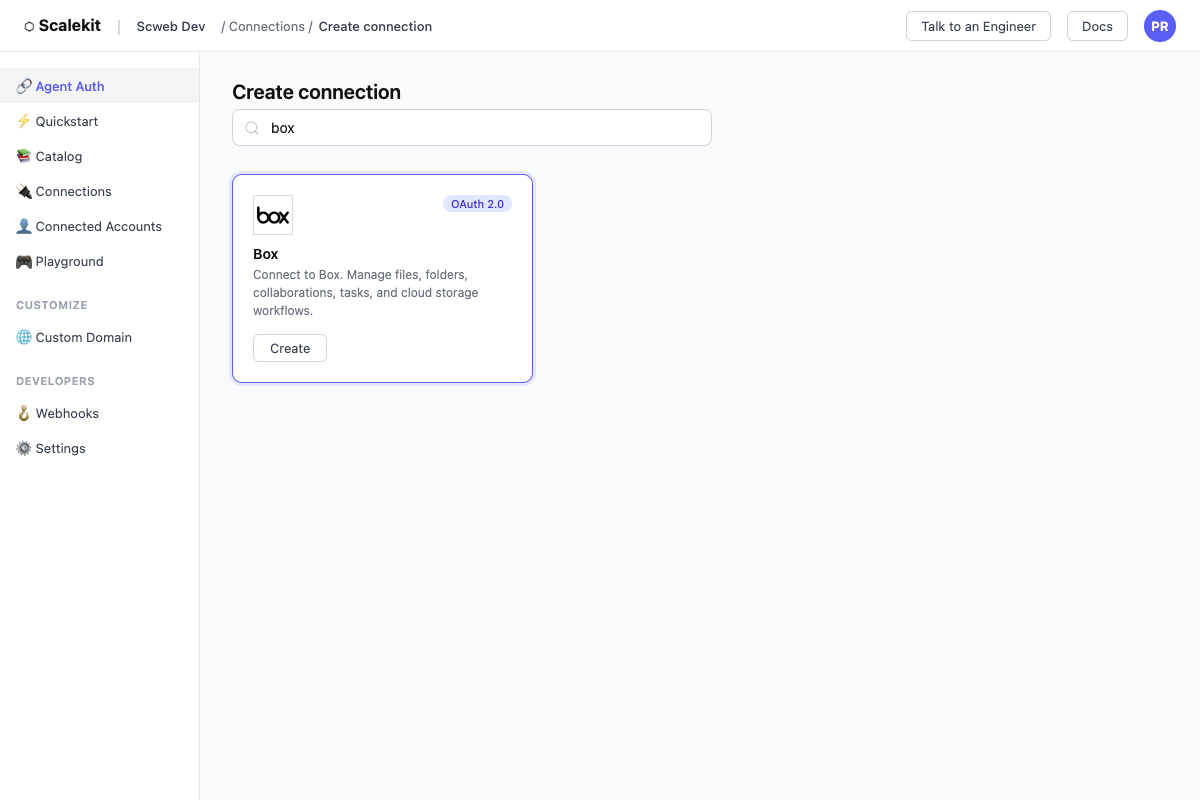

      • In Scalekit dashboard, go to AgentKit > Connections > Create Connection.
      • Find Box and click Create.

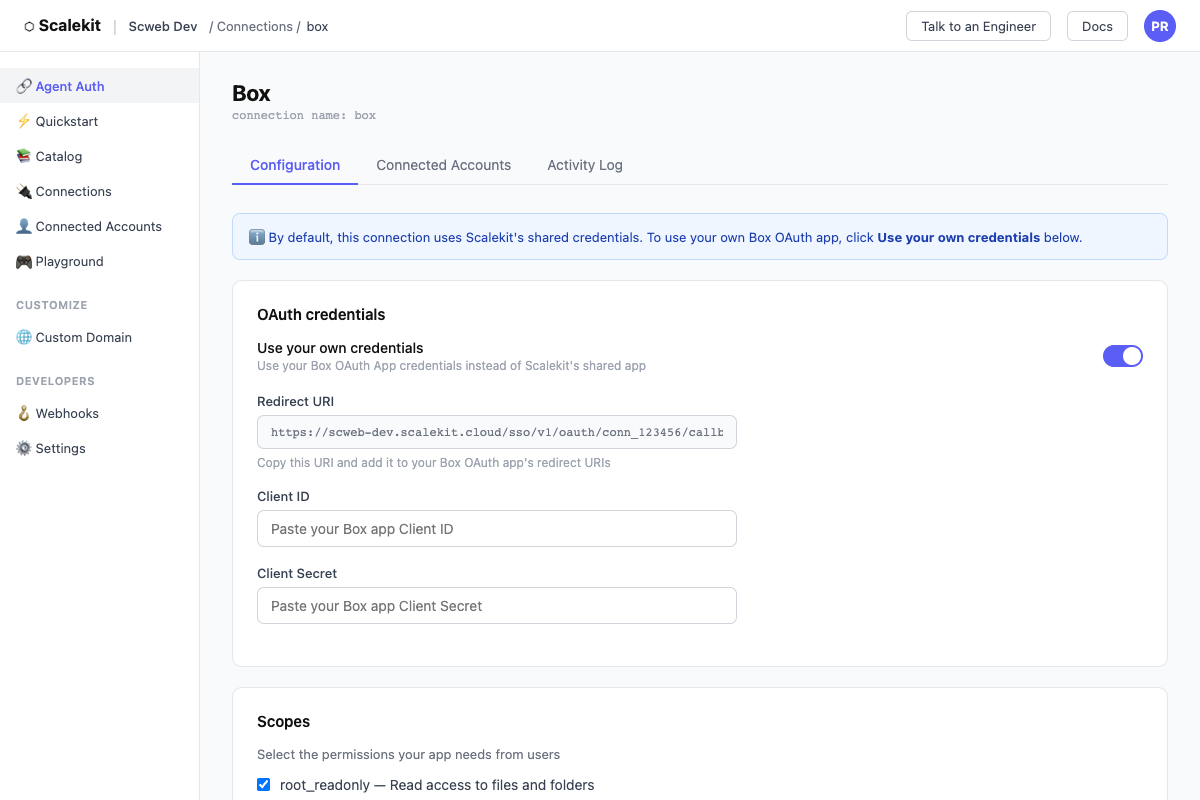

      • Click Use your own credentials and copy the redirect URI. It looks like: https://<env>.scalekit.cloud/sso/v1/oauth/<conn_id>/callback

    3. Add the redirect URI to Box

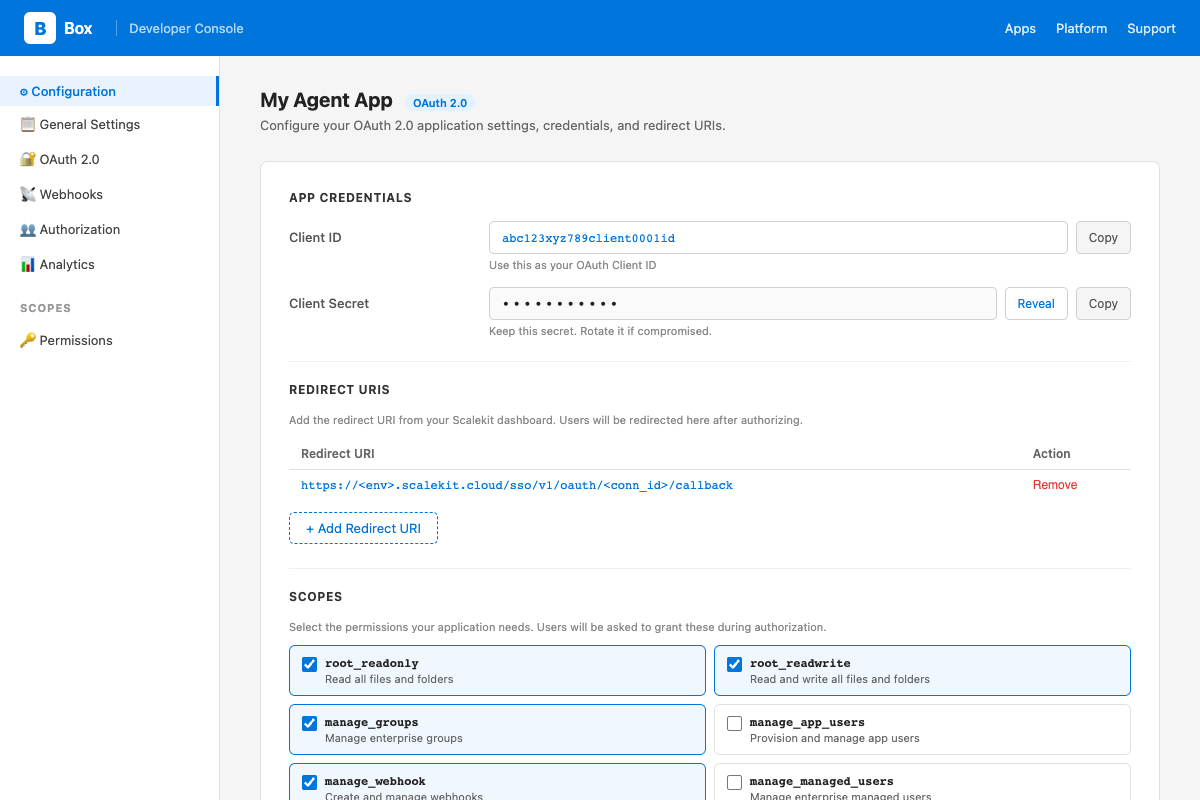

      • In the Box Developer Console, open your app and go to the Configuration tab.
      • Under OAuth 2.0 Redirect URI, paste the redirect URI from Scalekit and click Save Changes.

    4. Select scopes for your app

      Still on the Configuration tab in Box, scroll down to Application Scopes and enable the permissions your agent needs:

      ScopeRequired for
      root_readonlyReading files and folders
      root_readwriteCreating, updating, and deleting files/folders
      manage_groupsCreating and managing groups
      manage_webhookCreating and managing webhooks
      manage_managed_usersCreating and managing enterprise users
      manage_enterprise_propertiesAccessing enterprise events

      Click Save Changes after selecting scopes.

    5. Add credentials in Scalekit

      • In the Box Developer Console, open your app → Configuration tab.
      • Copy your Client ID and Client Secret.
      • In Scalekit dashboard, go to AgentKit > Connections, open the Box connection you created, and enter:
        • Client ID — from Box
        • Client Secret — from Box
        • Scopes — select the same scopes you enabled in Box (e.g. root_readonly, root_readwrite)

      • Click Save.

    6. Add a connected account for each user

      Each user who authorizes Box access becomes a connected account. During authorization, Box will show your app name and request the scopes you configured.

      Via dashboard (for testing)

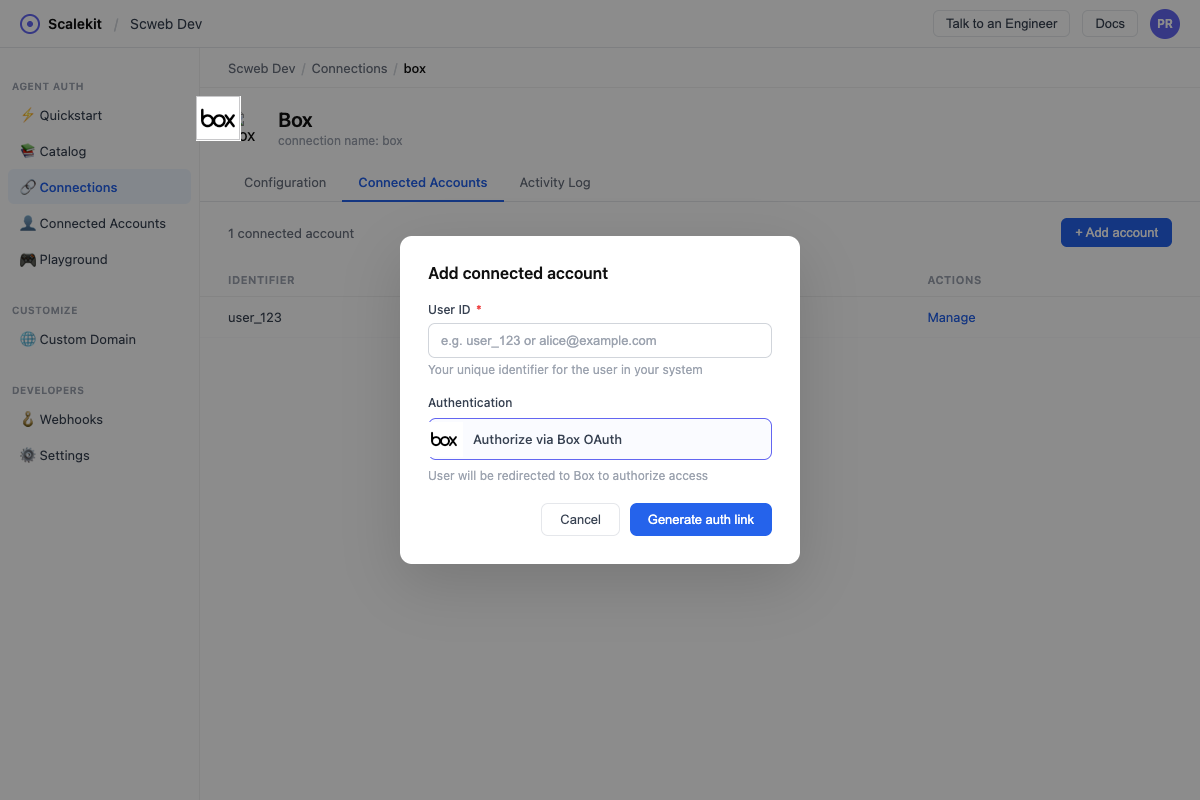

      • In Scalekit dashboard, go to your Box connection → Connected Accounts → Add Account.
      • Enter a User ID (your internal identifier for this user, e.g. user_123).
      • Click Add — you will be redirected to Box’s OAuth consent screen to authorize.

      Via API (for production)

      In production, generate an authorization link and redirect your user to it:

      const { link } = await scalekit.actions.getAuthorizationLink({
        connectionName: 'box',
        identifier: 'user_123',
      });
      // Redirect your user to `link`

      After the user authorizes, Scalekit stores their tokens. Your agent can then call Box tools on their behalf without any further redirects.

  4. Authorize and make your first call

    Section titled “Authorize and make your first call”
    quickstart.ts
    import { ScalekitClient } from '@scalekit-sdk/node'
    import 'dotenv/config'


    const scalekit = new ScalekitClient(
      process.env.SCALEKIT_ENV_URL,
      process.env.SCALEKIT_CLIENT_ID,
      process.env.SCALEKIT_CLIENT_SECRET,
    )
    const actions = scalekit.actions


    const connector = 'box'
    const identifier = 'user_123'


    // Generate an authorization link for the user
    const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
    console.log('Authorize Box:', link)
    process.stdout.write('Press Enter after authorizing...')
    await new Promise(r => process.stdin.once('data', r))


    // Make your first call
    const result = await actions.executeTool({
      connector,
      identifier,
      toolName: 'box_collections_list',
      toolInput: {},
    })
    console.log(result)

What you can do

Section titled “What you can do”

Connect this agent connector to let your agent:

  • Get upload session, sign request, retention policy — Retrieve the status and configuration of a chunked upload session, including its part size, total parts expected, and number of parts processed so far
  • Create upload session, sign request, retention policy — Create a chunked upload session for uploading a new large file (over 50MB) to a Box folder
  • Abort upload session — Abort and remove a chunked upload session, discarding any parts already uploaded
  • List sign requests, retention policy assignments, retention policies — Lists Box Sign requests in the enterprise
  • Cancel sign request — Cancels an in-progress Box Sign request so it can no longer be signed
  • Update retention policy, webhook, web link — Update an existing retention policy’s name, description, disposition action, modifiability, notification settings, or status

Common workflows

Section titled “Common workflows”
Proxy API call
// List files in the root folder
const result = await actions.request({
  connectionName: 'box',
  identifier: 'user_123',
  path: '/2.0/folders/0/items',
  method: 'GET',
});
console.log(result);
List folder contents

Start here to discover file and folder IDs. Use "0" for the root folder.

const result = await actions.executeTool({
  toolName: 'box_folder_items_list',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    folder_id: '0',  // root folder
  },
});
// result.entries[] contains files and folders with their IDs
Get file details
const file = await actions.executeTool({
  toolName: 'box_file_get',
  connector: 'box',
  identifier: 'user_123',
  toolInput: { file_id: '12345678' },
});
Search Box
const results = await actions.executeTool({
  toolName: 'box_search',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    query: 'quarterly report',
    type: 'file',
    file_extensions: 'pdf,docx',
  },
});
Create a task on a file
const task = await actions.executeTool({
  toolName: 'box_task_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    file_id: '12345678',
    message: 'Please review this document',
    action: 'review',
    due_at: '2025-12-31T00:00:00Z',
  },
});
// task.id is the task ID — use it with box_task_assignment_create
Share a file
const link = await actions.executeTool({
  toolName: 'box_shared_link_file_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    file_id: '12345678',
    access: 'company',   // open | company | collaborators
    can_download: true,
  },
});
Create a webhook

Webhooks require the manage_webhook scope. The triggers field is an array of event strings.

const webhook = await actions.executeTool({
  toolName: 'box_webhook_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    target_id: '0',
    target_type: 'folder',
    address: 'https://your-app.com/webhooks/box',
    triggers: ['FILE.UPLOADED', 'FILE.DELETED', 'FOLDER.CREATED'],
  },
});
Add a collaborator to a folder

Collaborations grant a user or group access to a specific file or folder. You need the user’s Box ID or email login.

// First, get the user's Box ID using box_users_list or box_user_me_get
const collab = await actions.executeTool({
  toolName: 'box_collaboration_create',
  connector: 'box',
  identifier: 'user_123',
  toolInput: {
    item_id: 'FOLDER_ID',
    item_type: 'folder',
    accessible_by_id: 'USER_BOX_ID',
    accessible_by_type: 'user',
    role: 'editor',
  },
});
// To find the collaboration ID later, use box_folder_collaborations_list

Tool list

Section titled “Tool list”

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

box_ai_ask#Sends a natural-language question plus up to 25 Box files as context to a supported LLM and returns an answer, optionally with citations and prior dialogue history for follow-up questions.5 params

Sends a natural-language question plus up to 25 Box files as context to a supported LLM and returns an answer, optionally with citations and prior dialogue history for follow-up questions.

NameTypeRequiredDescription
itemsstringrequiredJSON array of 1-25 Box files to use as context, each with a unique file ID. Example: [{"id": "12345", "type": "file"}]
modestringrequiredWhether the question is about a single item or multiple items. If 'single_item_qa', the items list must contain exactly one item.
promptstringrequiredThe question to ask about the given items. Max 10000 characters.
dialogue_historystringoptionalJSON array of previous question/answer turns, to give the LLM conversational context for a follow-up question.
include_citationsbooleanoptionalWhether to include citations (the specific file passages the answer is based on) in the response.
box_ai_extract#Sends a freeform extraction prompt plus Box files to an LLM and returns extracted data as key-value pairs, without needing a predefined metadata template. Use AI Extract Structured instead when you have a metadata template or a fixed field schema.2 params

Sends a freeform extraction prompt plus Box files to an LLM and returns extracted data as key-value pairs, without needing a predefined metadata template. Use AI Extract Structured instead when you have a metadata template or a fixed field schema.

NameTypeRequiredDescription
itemsstringrequiredJSON array of 1-25 Box files to extract data from, each with a unique file ID. Example: [{"id": "12345", "type": "file"}]
promptstringrequiredInstructions telling the LLM what data to extract, e.g. a list of fields to pull out. Can be plain text or an XML/JSON schema. Max 10000 characters.
box_ai_extract_structured#Extracts structured metadata from Box files using a metadata template or an explicit typed field list, returning key-value pairs matching that schema. Provide either metadata_template_key (with metadata_template_scope) or fields, but not both.5 params

Extracts structured metadata from Box files using a metadata template or an explicit typed field list, returning key-value pairs matching that schema. Provide either metadata_template_key (with metadata_template_scope) or fields, but not both.

NameTypeRequiredDescription
itemsstringrequiredJSON array of 1-25 Box files to extract data from, each with a unique file ID. Example: [{"id": "12345", "type": "file"}]
fieldsstringoptionalJSON array of field definitions to extract, used instead of a metadata template. Each field needs a unique 'key' and a 'type' (string, float, date, enum, or multiSelect). Mutually exclusive with metadata_template_key.
include_confidence_scorebooleanoptionalWhether to include a confidence score for each extracted field in the response.
metadata_template_keystringoptionalThe key of an existing Box metadata template to extract fields for. Provide metadata_template_scope alongside this. Mutually exclusive with 'fields'.
metadata_template_scopestringoptionalThe scope of the metadata template: 'global' or an enterprise scope like 'enterprise_12345'. Required when metadata_template_key is set.
box_collaboration_create#Grants a user or group access to a file or folder.8 params

Grants a user or group access to a file or folder.

NameTypeRequiredDescription
accessible_by_idstringrequiredID of the user or group to collaborate with.
accessible_by_typestringrequiredType: user or group.
item_idstringrequiredID of the file or folder.
item_typestringrequiredType of item: file or folder.
rolestringrequiredCollaboration role: viewer, previewer, uploader, previewer_uploader, viewer_uploader, co-owner, or editor.
can_view_pathstringoptionalAllow user to see path to item (true/false).
expires_atstringoptionalExpiry date in ISO 8601 format.
notifystringoptionalNotify collaborator via email (true/false).
box_collaboration_delete#Removes a collaboration, revoking user or group access.1 param

Removes a collaboration, revoking user or group access.

NameTypeRequiredDescription
collaboration_idstringrequiredID of the collaboration to delete.
box_collaboration_get#Retrieves details of a specific collaboration.3 params

Retrieves details of a specific collaboration.

NameTypeRequiredDescription
collaboration_idstringrequiredID of the collaboration.
fieldsstringoptionalComma-separated list of fields to return.
xero_tenant_idstringoptionalXero tenant (organisation) ID.
box_collaboration_update#Updates the role or status of a collaboration.5 params

Updates the role or status of a collaboration.

NameTypeRequiredDescription
collaboration_idstringrequiredID of the collaboration.
can_view_pathbooleanoptionalAllow user to see path to item.
expires_atstringoptionalNew expiry date in ISO 8601 format.
rolestringoptionalNew collaboration role.
statusstringoptionalCollaboration status: accepted or rejected.
box_collection_items_list#Retrieves the items in a collection (e.g. Favorites).4 params

Retrieves the items in a collection (e.g. Favorites).

NameTypeRequiredDescription
collection_idstringrequiredID of the collection.
fieldsstringoptionalComma-separated list of fields to return.
limitintegeroptionalMax results.
offsetintegeroptionalPagination offset.
box_collections_list#Retrieves all collections (e.g. Favorites) for the user.3 params

Retrieves all collections (e.g. Favorites) for the user.

NameTypeRequiredDescription
fieldsstringoptionalComma-separated list of fields to return.
limitintegeroptionalMax results.
offsetintegeroptionalPagination offset.
box_comment_create#Adds a comment to a file.4 params

Adds a comment to a file.

NameTypeRequiredDescription
item_idstringrequiredID of the file to comment on.
item_typestringrequiredType of item: file or comment.
messagestringrequiredText of the comment.
tagged_messagestringoptionalComment text with @mentions using @[user_id:user_name] syntax.
box_comment_delete#Removes a comment.1 param

Removes a comment.

NameTypeRequiredDescription
comment_idstringrequiredID of the comment to delete.
box_comment_get#Retrieves a comment.2 params

Retrieves a comment.

NameTypeRequiredDescription
comment_idstringrequiredID of the comment.
fieldsstringoptionalComma-separated list of fields to return.
box_comment_update#Updates the text of a comment.2 params

Updates the text of a comment.

NameTypeRequiredDescription
comment_idstringrequiredID of the comment to update.
messagestringrequiredNew text for the comment.
box_events_list#Retrieves events from the event stream.6 params

Retrieves events from the event stream.

NameTypeRequiredDescription
created_afterstringoptionalReturn events after this date (ISO 8601).
created_beforestringoptionalReturn events before this date (ISO 8601).
event_typestringoptionalComma-separated list of event types to filter.
limitintegeroptionalMax events to return.
stream_positionstringoptionalPagination position from a previous response.
stream_typestringoptionalEvent stream type: all, changes, sync, or admin_logs.
box_file_collaborations_list#Retrieves all collaborations on a file.2 params

Retrieves all collaborations on a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
fieldsstringoptionalComma-separated list of fields to return.
box_file_comments_list#Retrieves all comments on a file.2 params

Retrieves all comments on a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
fieldsstringoptionalComma-separated list of fields to return.
box_file_copy#Creates a copy of a file in a specified folder.3 params

Creates a copy of a file in a specified folder.

NameTypeRequiredDescription
file_idstringrequiredID of the file to copy.
parent_idstringrequiredID of the destination folder.
namestringoptionalNew name for the copied file (optional).
box_file_delete#Moves a file to the trash.1 param

Moves a file to the trash.

NameTypeRequiredDescription
file_idstringrequiredID of the file to delete.
box_file_get#Retrieves detailed information about a file.2 params

Retrieves detailed information about a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
fieldsstringoptionalComma-separated list of fields to return.
box_file_metadata_create#Applies metadata to a file.4 params

Applies metadata to a file.

NameTypeRequiredDescription
data_jsonstringrequiredJSON object of metadata fields and values.
file_idstringrequiredID of the file.
scopestringrequiredScope: global or enterprise.
template_keystringrequiredMetadata template key.
box_file_metadata_delete#Removes a metadata instance from a file.3 params

Removes a metadata instance from a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
scopestringrequiredScope: global or enterprise.
template_keystringrequiredMetadata template key.
box_file_metadata_get#Retrieves a specific metadata instance on a file.3 params

Retrieves a specific metadata instance on a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
scopestringrequiredScope: global or enterprise.
template_keystringrequiredMetadata template key.
box_file_metadata_list#Retrieves all metadata instances attached to a file.1 param

Retrieves all metadata instances attached to a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
box_file_representations_get#Retrieves available representations for a file, such as thumbnails, PDFs, or extracted text. Use the x_rep_hints parameter to request specific formats.2 params

Retrieves available representations for a file, such as thumbnails, PDFs, or extracted text. Use the x_rep_hints parameter to request specific formats.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
x_rep_hintsstringrequiredHints for which representations to generate, e.g. [pdf][extracted_text][jpg?dimensions=320x320].
box_file_tasks_list#Retrieves all tasks associated with a file.1 param

Retrieves all tasks associated with a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
box_file_thumbnail_get#Retrieves a thumbnail image for a file.4 params

Retrieves a thumbnail image for a file.

NameTypeRequiredDescription
extensionstringrequiredThumbnail format: jpg or png.
file_idstringrequiredID of the file.
min_heightintegeroptionalMinimum height of the thumbnail in pixels.
min_widthintegeroptionalMinimum width of the thumbnail in pixels.
box_file_update#Updates a file's name, description, tags, or moves it to another folder.5 params

Updates a file's name, description, tags, or moves it to another folder.

NameTypeRequiredDescription
file_idstringrequiredID of the file to update.
descriptionstringoptionalNew description for the file.
namestringoptionalNew name for the file.
parent_idstringoptionalID of the folder to move the file into.
tagsstringoptionalComma-separated list of tags. Pass as JSON string.
box_file_upload#Upload a new file (up to 50MB) to a Box folder in a single request. The file content must be supplied as a base64-encoded string along with a filename and destination folder. For larger files, use the Create Upload Session tool instead.5 params

Upload a new file (up to 50MB) to a Box folder in a single request. The file content must be supplied as a base64-encoded string along with a filename and destination folder. For larger files, use the Create Upload Session tool instead.

NameTypeRequiredDescription
file_content_base64stringrequiredBase64-encoded contents of the file to upload.
filenamestringrequiredName the uploaded file will have in Box, including extension.
parent_idstringrequiredID of the folder to upload the file into. Use '0' for root.
content_created_atstringoptionalThe date and time the file was originally created, in ISO 8601 format. Defaults to the upload time if omitted.
content_modified_atstringoptionalThe date and time the file was last modified before upload, in ISO 8601 format. Defaults to the upload time if omitted.
box_file_version_retention_get#Retrieve a single file version retention record by ID, showing the file version it locks, the policy that created it, and when its retention period ends.1 param

Retrieve a single file version retention record by ID, showing the file version it locks, the policy that created it, and when its retention period ends.

NameTypeRequiredDescription
file_version_retention_idstringrequiredID of the file version retention record to retrieve.
box_file_version_retentions_list#List the file version retention records showing which specific file versions are currently locked under a retention policy, and when their retention period will end.6 params

List the file version retention records showing which specific file versions are currently locked under a retention policy, and when their retention period will end.

NameTypeRequiredDescription
disposition_actionstringoptionalFilter by what happens when retention ends: permanently_delete or remove_retention.
disposition_afterstringoptionalFilter to retentions whose disposition date is after this timestamp (ISO 8601).
disposition_beforestringoptionalFilter to retentions whose disposition date is before this timestamp (ISO 8601).
file_idstringoptionalFilter to retentions on this file ID.
file_version_idstringoptionalFilter to the retention on this specific file version ID.
policy_idstringoptionalFilter to retentions created by this retention policy ID.
box_file_version_upload_session_create#Create a chunked upload session for uploading a new large version (over 50MB) of an existing Box file. Returns an upload URL and the part size the caller uses to upload the new version's content in subsequent part uploads, followed by a commit call.3 params

Create a chunked upload session for uploading a new large version (over 50MB) of an existing Box file. Returns an upload URL and the part size the caller uses to upload the new version's content in subsequent part uploads, followed by a commit call.

NameTypeRequiredDescription
file_idstringrequiredID of the existing file to upload a new version for.
file_sizeintegerrequiredTotal size of the new version's file content, in bytes.
file_namestringoptionalOptional new name for the file. Leave blank to keep the current name.
box_file_versions_list#Retrieves all previous versions of a file.1 param

Retrieves all previous versions of a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file.
box_folder_collaborations_list#Retrieves all collaborations on a folder.2 params

Retrieves all collaborations on a folder.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder.
fieldsstringoptionalComma-separated list of fields to return.
box_folder_copy#Creates a copy of a folder and its contents.3 params

Creates a copy of a folder and its contents.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder to copy.
parent_idstringrequiredID of the destination folder.
namestringoptionalNew name for the copied folder (optional).
box_folder_create#Creates a new folder inside a parent folder.3 params

Creates a new folder inside a parent folder.

NameTypeRequiredDescription
namestringrequiredName of the new folder.
parent_idstringrequiredID of the parent folder. Use '0' for root.
fieldsstringoptionalComma-separated list of fields to return.
box_folder_delete#Moves a folder to the trash.2 params

Moves a folder to the trash.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder to delete.
recursivestringoptionalDelete non-empty folders recursively (true/false).
box_folder_get#Retrieves a folder's details and its items.6 params

Retrieves a folder's details and its items.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder. Use '0' for root.
directionstringoptionalSort direction: ASC or DESC.
fieldsstringoptionalComma-separated list of fields to return.
limitintegeroptionalMax items to return (max 1000).
offsetintegeroptionalPagination offset.
sortstringoptionalSort order: id, name, date, or size.
box_folder_items_list#Retrieves a paginated list of items in a folder.6 params

Retrieves a paginated list of items in a folder.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder. Use '0' for root.
directionstringoptionalASC or DESC.
fieldsstringoptionalComma-separated list of fields to return.
limitintegeroptionalMax items to return (max 1000).
offsetintegeroptionalPagination offset.
sortstringoptionalSort field: id, name, date, or size.
box_folder_metadata_list#Retrieves all metadata instances on a folder.1 param

Retrieves all metadata instances on a folder.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder.
box_folder_update#Updates a folder's name, description, or moves it.4 params

Updates a folder's name, description, or moves it.

NameTypeRequiredDescription
folder_idstringrequiredID of the folder to update.
descriptionstringoptionalNew description for the folder.
namestringoptionalNew name for the folder.
parent_idstringoptionalID of the new parent folder to move into.
box_group_create#Creates a new group in the enterprise.5 params

Creates a new group in the enterprise.

NameTypeRequiredDescription
namestringrequiredName of the group.
descriptionstringoptionalDescription of the group.
invitability_levelstringoptionalWho can invite to group: admins_only, admins_and_members, all_managed_users.
member_viewability_levelstringoptionalWho can view group members: admins_only, admins_and_members, all_managed_users.
provenancestringoptionalIdentifier to distinguish manually vs synced groups.
box_group_delete#Permanently deletes a group.1 param

Permanently deletes a group.

NameTypeRequiredDescription
group_idstringrequiredID of the group to delete.
box_group_get#Retrieves information about a group.2 params

Retrieves information about a group.

NameTypeRequiredDescription
group_idstringrequiredID of the group.
fieldsstringoptionalComma-separated list of fields to return.
box_group_members_list#Retrieves all members of a group.3 params

Retrieves all members of a group.

NameTypeRequiredDescription
group_idstringrequiredID of the group.
limitintegeroptionalMax results.
offsetintegeroptionalPagination offset.
box_group_membership_add#Adds a user to a group.3 params

Adds a user to a group.

NameTypeRequiredDescription
group_idstringrequiredID of the group.
user_idstringrequiredID of the user to add.
rolestringoptionalRole in the group: member or admin.
box_group_membership_get#Retrieves a specific group membership.2 params

Retrieves a specific group membership.

NameTypeRequiredDescription
group_membership_idstringrequiredID of the group membership.
fieldsstringoptionalComma-separated list of fields to return.
box_group_membership_remove#Removes a user from a group.1 param

Removes a user from a group.

NameTypeRequiredDescription
group_membership_idstringrequiredID of the group membership to remove.
box_group_membership_update#Updates a user's role in a group.2 params

Updates a user's role in a group.

NameTypeRequiredDescription
group_membership_idstringrequiredID of the membership to update.
rolestringoptionalNew role: member or admin.
box_group_update#Updates a group's properties.5 params

Updates a group's properties.

NameTypeRequiredDescription
group_idstringrequiredID of the group to update.
descriptionstringoptionalNew description.
invitability_levelstringoptionalWho can invite: admins_only, admins_and_members, all_managed_users.
member_viewability_levelstringoptionalWho can view members.
namestringoptionalNew name for the group.
box_groups_list#Retrieves all groups in the enterprise.4 params

Retrieves all groups in the enterprise.

NameTypeRequiredDescription
fieldsstringoptionalComma-separated list of fields to return.
filter_termstringoptionalFilter groups by name.
limitintegeroptionalMax results.
offsetintegeroptionalPagination offset.
box_metadata_template_get#Retrieves a metadata template schema.2 params

Retrieves a metadata template schema.

NameTypeRequiredDescription
scopestringrequiredScope of the template: global or enterprise.
template_keystringrequiredKey of the metadata template.
box_metadata_templates_list#Retrieves all metadata templates for the enterprise.2 params

Retrieves all metadata templates for the enterprise.

NameTypeRequiredDescription
limitintegeroptionalMax results.
markerstringoptionalPagination marker.
box_recent_items_list#Retrieves files and folders accessed recently.3 params

Retrieves files and folders accessed recently.

NameTypeRequiredDescription
fieldsstringoptionalComma-separated list of fields to return.
limitintegeroptionalMax results.
markerstringoptionalPagination marker.
box_retention_policies_list#List the retention policies configured for the enterprise. Filter by name prefix, policy type, or the user who created the policy.5 params

List the retention policies configured for the enterprise. Filter by name prefix, policy type, or the user who created the policy.

NameTypeRequiredDescription
created_by_user_idstringoptionalFilter results to retention policies created by this user ID.
limitintegeroptionalMax results per page (max 1000).
markerstringoptionalPagination marker from a previous response's next_marker.
policy_namestringoptionalCase-sensitive prefix to filter retention policies by name.
policy_typestringoptionalFilter by policy type: finite or indefinite.
box_retention_policy_assignment_create#Assign a retention policy to the whole enterprise, a specific folder, or all files matching a metadata template. filter_fields is only used when assigning to a metadata_template.5 params

Assign a retention policy to the whole enterprise, a specific folder, or all files matching a metadata template. filter_fields is only used when assigning to a metadata_template.

NameTypeRequiredDescription
assign_to_typestringrequiredType of object to assign the retention policy to.
policy_idstringrequiredID of the retention policy to assign.
assign_to_idstringoptionalID of the object to assign the policy to. Required for 'folder' (folder ID) and 'metadata_template' (template scope.key, e.g. 'enterprise_12345.contractTemplate'). Omit for 'enterprise'.
filter_fieldsstringoptionalJSON array of {field, value} pairs identifying the metadata template field and value that content must match. Only used when assign_to_type is metadata_template.
start_date_fieldstringoptionalField that determines when the retention period begins: 'upload_date', 'created_at', or a metadata template date field key. Only used when assign_to_type is metadata_template.
box_retention_policy_assignment_delete#Remove a retention policy assignment by ID, unassigning the policy from the enterprise, folder, or metadata template it was applied to. This does not delete files already under retention.1 param

Remove a retention policy assignment by ID, unassigning the policy from the enterprise, folder, or metadata template it was applied to. This does not delete files already under retention.

NameTypeRequiredDescription
retention_policy_assignment_idstringrequiredID of the retention policy assignment to remove.
box_retention_policy_assignment_get#Retrieve a single retention policy assignment by ID, showing which policy is assigned and to what enterprise, folder, or metadata template.1 param

Retrieve a single retention policy assignment by ID, showing which policy is assigned and to what enterprise, folder, or metadata template.

NameTypeRequiredDescription
retention_policy_assignment_idstringrequiredID of the retention policy assignment to retrieve.
box_retention_policy_assignments_list#List the assignments (enterprise, folders, or metadata templates) that a retention policy has been applied to.4 params

List the assignments (enterprise, folders, or metadata templates) that a retention policy has been applied to.

NameTypeRequiredDescription
retention_policy_idstringrequiredID of the retention policy whose assignments to list.
limitintegeroptionalMax results per page (max 1000).
markerstringoptionalPagination marker from a previous response's next_marker.
typestringoptionalFilter assignments by the type of object they were assigned to: enterprise, folder, or metadata_template.
box_retention_policy_create#Create a new retention policy for the enterprise, defining how long files under it are kept and what happens when the retention period ends (permanently delete, or just remove the retention restriction).9 params

Create a new retention policy for the enterprise, defining how long files under it are kept and what happens when the retention period ends (permanently delete, or just remove the retention restriction).

NameTypeRequiredDescription
disposition_actionstringrequiredWhat happens when the retention period ends: permanently_delete or remove_retention (release the restriction, keeping the file).
policy_namestringrequiredName of the retention policy.
policy_typestringrequiredWhether the policy retains files for a fixed number of days (finite) or forever until manually released (indefinite).
are_owners_notifiedbooleanoptionalWhether owners are notified when their files are nearing the end of the retention period.
can_owner_extend_retentionbooleanoptionalWhether the file owner can extend the retention period once it is about to end.
custom_notification_recipientsarrayoptionalJSON array of user IDs to notify in addition to file owners when files are nearing the end of retention.
descriptionstringoptionalDescription of the retention policy's purpose, up to 500 characters.
retention_lengthintegeroptionalNumber of days to retain files. Required when policy_type is 'finite'; ignored for 'indefinite'.
retention_typestringoptionalWhether the policy can be modified/removed by an admin after creation: modifiable or non_modifiable.
box_retention_policy_delete#Permanently delete a retention policy. The policy must have no active assignments; remove all retention policy assignments first.1 param

Permanently delete a retention policy. The policy must have no active assignments; remove all retention policy assignments first.

NameTypeRequiredDescription
retention_policy_idstringrequiredID of the retention policy to delete.
box_retention_policy_get#Retrieve detailed information about a single retention policy by ID.1 param

Retrieve detailed information about a single retention policy by ID.

NameTypeRequiredDescription
retention_policy_idstringrequiredID of the retention policy to retrieve.
box_retention_policy_update#Update an existing retention policy's name, description, disposition action, modifiability, notification settings, or status. Set status to 'retired' to stop the policy from applying to newly assigned content.8 params

Update an existing retention policy's name, description, disposition action, modifiability, notification settings, or status. Set status to 'retired' to stop the policy from applying to newly assigned content.

NameTypeRequiredDescription
retention_policy_idstringrequiredID of the retention policy to update.
are_owners_notifiedbooleanoptionalWhether owners are notified when their files are nearing the end of the retention period.
can_owner_extend_retentionbooleanoptionalWhether the file owner can extend the retention period once it is about to end.
descriptionstringoptionalUpdated description of the retention policy's purpose.
disposition_actionstringoptionalWhat happens when the retention period ends: permanently_delete or remove_retention.
policy_namestringoptionalUpdated name of the retention policy.
retention_typestringoptionalWhether the policy can be modified/removed after creation: modifiable or non_modifiable. Can only be changed from non_modifiable in limited cases.
statusstringoptionalSet to 'retired' to retire the policy so it no longer applies to newly assigned content.
box_sign_request_cancel#Cancels an in-progress Box Sign request so it can no longer be signed.2 params

Cancels an in-progress Box Sign request so it can no longer be signed.

NameTypeRequiredDescription
sign_request_idstringrequiredID of the sign request to cancel.
reasonstringoptionalAn optional reason for cancelling the sign request.
box_sign_request_create#Creates a Box Sign e-signature request for one or more files (up to ten), sending it to the given signers. Provide either source_files or template_id.14 params

Creates a Box Sign e-signature request for one or more files (up to ten), sending it to the given signers. Provide either source_files or template_id.

NameTypeRequiredDescription
signersstringrequiredJSON array of signers, each requiring at least an email address. Up to 35 signers.
are_reminders_enabledbooleanoptionalWhether to automatically send reminder emails to signers on days 3, 8, 13, and 18.
are_text_signatures_enabledbooleanoptionalWhether signers are allowed to type their signature instead of drawing it. Defaults to true.
days_validintegeroptionalNumber of days the signature request remains valid before it expires. Max 730.
declined_redirect_urlstringoptionalURL to redirect signers to after they have declined to sign the document.
email_messagestringoptionalCustom message included in the signature request email. Supports a limited set of HTML tags.
email_subjectstringoptionalCustom subject line for the signature request email.
external_idstringoptionalA reference ID for this signature request in an external system.
is_document_preparation_neededbooleanoptionalWhether the sender needs to prepare the document (place signature fields) before it is sent to signers. When true, the response includes a prepare_url.
namestringoptionalName of the signature request.
parent_folder_idstringoptionalID of the Box folder where the signed documents and audit log will be placed. Cannot be the root folder.
redirect_urlstringoptionalURL to redirect signers to after they have signed the document.
source_filesstringoptionalJSON array of up to ten Box files to sign, each with a unique file ID. Required unless template_id is set.
template_idstringoptionalID of a pre-configured Box Sign template to use instead of source_files.
box_sign_request_get#Retrieves a single Box Sign request's status, signers, and file info.1 param

Retrieves a single Box Sign request's status, signers, and file info.

NameTypeRequiredDescription
sign_request_idstringrequiredID of the sign request to retrieve.
box_sign_requests_list#Lists Box Sign requests in the enterprise.3 params

Lists Box Sign requests in the enterprise.

NameTypeRequiredDescription
limitintegeroptionalMaximum number of sign requests to return per page (max 1000).
markerstringoptionalPagination marker from a previous response, indicating where to continue.
shared_requestsbooleanoptionalWhen true, returns only sign requests where the current user is a collaborator rather than the sender.
box_task_assignment_create#Assigns a task to a user.3 params

Assigns a task to a user.

NameTypeRequiredDescription
task_idstringrequiredID of the task to assign.
user_idstringoptionalID of the user to assign the task to.
user_loginstringoptionalEmail login of the user (alternative to user_id).
box_task_assignment_delete#Removes a task assignment from a user.1 param

Removes a task assignment from a user.

NameTypeRequiredDescription
task_assignment_idstringrequiredID of the task assignment to remove.
box_task_assignment_get#Retrieves a specific task assignment.1 param

Retrieves a specific task assignment.

NameTypeRequiredDescription
task_assignment_idstringrequiredID of the task assignment.
box_task_assignment_update#Updates a task assignment (complete, approve, or reject).3 params

Updates a task assignment (complete, approve, or reject).

NameTypeRequiredDescription
task_assignment_idstringrequiredID of the task assignment.
messagestringoptionalOptional message/comment for the resolution.
resolution_statestringoptionalResolution state: completed, incomplete, approved, or rejected.
box_task_assignments_list#Retrieves all assignments for a task.1 param

Retrieves all assignments for a task.

NameTypeRequiredDescription
task_idstringrequiredID of the task.
box_task_create#Creates a task on a file.5 params

Creates a task on a file.

NameTypeRequiredDescription
file_idstringrequiredID of the file to attach the task to.
actionstringoptionalAction: review or complete.
completion_rulestringoptionalCompletion rule: all_assignees or any_assignee.
due_atstringoptionalDue date in ISO 8601 format.
messagestringoptionalTask message/description.
box_task_delete#Removes a task from a file.1 param

Removes a task from a file.

NameTypeRequiredDescription
task_idstringrequiredID of the task to delete.
box_task_get#Retrieves a task's details.1 param

Retrieves a task's details.

NameTypeRequiredDescription
task_idstringrequiredID of the task.
box_task_update#Updates a task's message, due date, or completion rule.5 params

Updates a task's message, due date, or completion rule.

NameTypeRequiredDescription
task_idstringrequiredID of the task to update.
actionstringoptionalNew action: review or complete.
completion_rulestringoptionalNew completion rule: all_assignees or any_assignee.
due_atstringoptionalNew due date in ISO 8601 format.
messagestringoptionalNew message for the task.
box_trash_file_permanently_delete#Permanently deletes a trashed file.1 param

Permanently deletes a trashed file.

NameTypeRequiredDescription
file_idstringrequiredID of the trashed file.
box_trash_file_restore#Restores a file from the trash.3 params

Restores a file from the trash.

NameTypeRequiredDescription
file_idstringrequiredID of the trashed file.
namestringoptionalNew name if original name is taken.
parent_idstringoptionalParent folder ID if original is unavailable.
box_trash_folder_permanently_delete#Permanently deletes a trashed folder.1 param

Permanently deletes a trashed folder.

NameTypeRequiredDescription
folder_idstringrequiredID of the trashed folder.
box_trash_folder_restore#Restores a folder from the trash.3 params

Restores a folder from the trash.

NameTypeRequiredDescription
folder_idstringrequiredID of the trashed folder.
namestringoptionalNew name if original is taken.
parent_idstringoptionalNew parent folder ID if original is unavailable.
box_trash_list#Retrieves items in the user's trash.5 params

Retrieves items in the user's trash.

NameTypeRequiredDescription
directionstringoptionalSort direction: ASC or DESC.
fieldsstringoptionalComma-separated list of fields to return.
limitintegeroptionalMax results.
offsetintegeroptionalPagination offset.
sortstringoptionalSort field: name, date, or size.
box_upload_session_abort#Abort and remove a chunked upload session, discarding any parts already uploaded. Use this to cancel an in-progress large file upload.1 param

Abort and remove a chunked upload session, discarding any parts already uploaded. Use this to cancel an in-progress large file upload.

NameTypeRequiredDescription
upload_session_idstringrequiredID of the upload session to abort.
box_upload_session_create#Create a chunked upload session for uploading a new large file (over 50MB) to a Box folder. Returns an upload URL and the part size the caller uses to upload the file content in subsequent part uploads, followed by a commit call. Use Upload File instead for files under 50MB.3 params

Create a chunked upload session for uploading a new large file (over 50MB) to a Box folder. Returns an upload URL and the part size the caller uses to upload the file content in subsequent part uploads, followed by a commit call. Use Upload File instead for files under 50MB.

NameTypeRequiredDescription
file_namestringrequiredName the uploaded file will have in Box, including extension.
file_sizeintegerrequiredTotal size of the file to be uploaded, in bytes.
folder_idstringrequiredID of the folder to upload the file into. Use '0' for root.
box_upload_session_get#Retrieve the status and configuration of a chunked upload session, including its part size, total parts expected, and number of parts processed so far.1 param

Retrieve the status and configuration of a chunked upload session, including its part size, total parts expected, and number of parts processed so far.

NameTypeRequiredDescription
upload_session_idstringrequiredID of the upload session to retrieve.
box_user_create#Creates a new user in the enterprise.5 params

Creates a new user in the enterprise.

NameTypeRequiredDescription
namestringrequiredFull name of the user.
is_platform_access_onlybooleanoptionalSet true for app users (no login).
loginstringoptionalEmail address (login) for managed users.
rolestringoptionalUser role: user or coadmin.
space_amountintegeroptionalStorage quota in bytes (-1 for unlimited).
box_user_delete#Removes a user from the enterprise.3 params

Removes a user from the enterprise.

NameTypeRequiredDescription
user_idstringrequiredID of the user to delete.
forcestringoptionalForce deletion even if user owns content (true/false).
notifystringoptionalNotify user via email (true/false).
box_user_get#Retrieves information about a specific user.2 params

Retrieves information about a specific user.

NameTypeRequiredDescription
user_idstringrequiredID of the user.
fieldsstringoptionalComma-separated list of fields to return.
box_user_me_get#Retrieves information about the currently authenticated user.1 param

Retrieves information about the currently authenticated user.

NameTypeRequiredDescription
fieldsstringoptionalComma-separated list of fields to return.
box_user_memberships_list#Retrieves all group memberships for a user.3 params

Retrieves all group memberships for a user.

NameTypeRequiredDescription
user_idstringrequiredID of the user.
limitintegeroptionalMax results.
offsetintegeroptionalPagination offset.
box_user_update#Updates a user's properties in the enterprise.6 params

Updates a user's properties in the enterprise.

NameTypeRequiredDescription
user_idstringrequiredID of the user to update.
namestringoptionalNew full name.
rolestringoptionalNew role: user or coadmin.
space_amountintegeroptionalStorage quota in bytes.
statusstringoptionalNew status: active, inactive, or cannot_delete_edit.
tracking_codesstringoptionalTracking codes as JSON array string.
box_users_list#Retrieves all users in the enterprise.5 params

Retrieves all users in the enterprise.

NameTypeRequiredDescription
fieldsstringoptionalComma-separated list of fields to return.
filter_termstringoptionalFilter users by name or login.
limitintegeroptionalMax users to return.
offsetintegeroptionalPagination offset.
user_typestringoptionalFilter by type: all, managed, or external.
box_webhook_create#Creates a webhook to receive event notifications.4 params

Creates a webhook to receive event notifications.

NameTypeRequiredDescription
addressstringrequiredHTTPS URL to receive webhook notifications.
target_idstringrequiredID of the file or folder to watch.
target_typestringrequiredType of target: file or folder.
triggersarrayrequiredArray of trigger events, e.g. ["FILE.UPLOADED","FILE.DELETED"].
box_webhook_delete#Removes a webhook.1 param

Removes a webhook.

NameTypeRequiredDescription
webhook_idstringrequiredID of the webhook to delete.
box_webhook_get#Retrieves a webhook's details.1 param

Retrieves a webhook's details.

NameTypeRequiredDescription
webhook_idstringrequiredID of the webhook.
box_webhook_update#Updates a webhook's address or triggers.5 params

Updates a webhook's address or triggers.

NameTypeRequiredDescription
webhook_idstringrequiredID of the webhook to update.
addressstringoptionalNew HTTPS URL for notifications.
target_idstringoptionalNew target ID.
target_typestringoptionalNew target type: file or folder.
triggersarrayoptionalNew array of trigger events, e.g. ["FILE.UPLOADED","FILE.DELETED"].
box_webhooks_list#Retrieves all webhooks for the application.2 params

Retrieves all webhooks for the application.

NameTypeRequiredDescription
limitintegeroptionalMax results.
markerstringoptionalPagination marker.
